Repair Procedures: Replacement

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

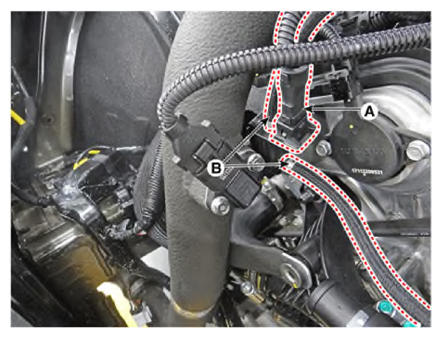

Disconnect the RCV control solenoid valve connector (A) and vapor hoses (B).
Remove the RCV control solenoid valve.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

NOTE:

Install the component with the specified torques.
Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
