Repair Procedures: Replacement

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

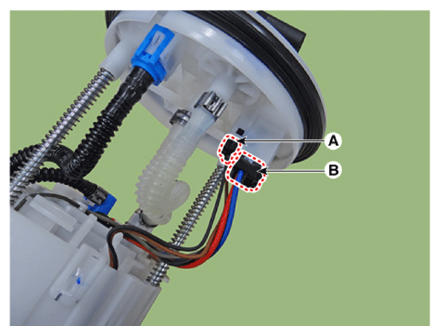

  2. Remove the fuel sender connector (A).
  3. Disconnect the pump connector (B).
    G13143557Courtesy of KIA MOTORS AMERICA, INC.

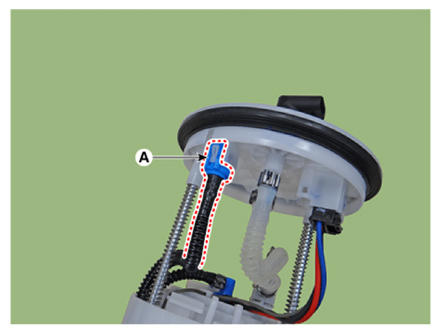

  4. Disconnect the suction hose (A) after releasing the fixing hook.
    G13143558Courtesy of KIA MOTORS AMERICA, INC.

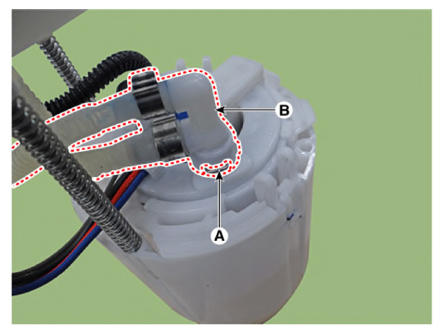

  5. Remove the fixing clip (A), and then disconnect the fuel feed tube quick-connector (B).
    G13143559Courtesy of KIA MOTORS AMERICA, INC.

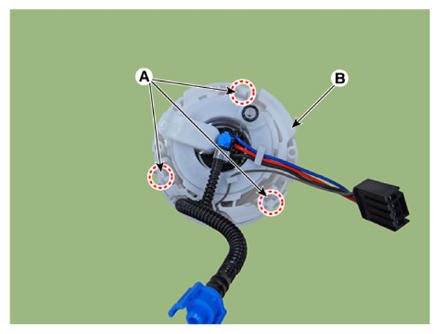

  6. Remove the reservoir-cup (B) after releasing the fixing hooks (A).
    G13143560Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the fuel pump motor connector (A).
    G13143561Courtesy of KIA MOTORS AMERICA, INC.

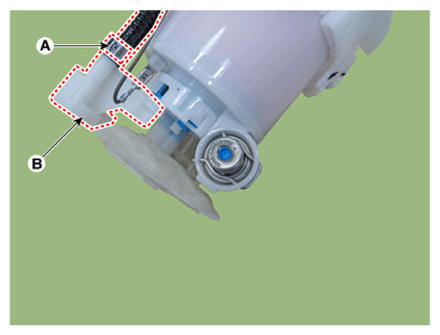

  8. Remove the fixing clip (A), and then assist pump assembly (B).
    G13143562Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:

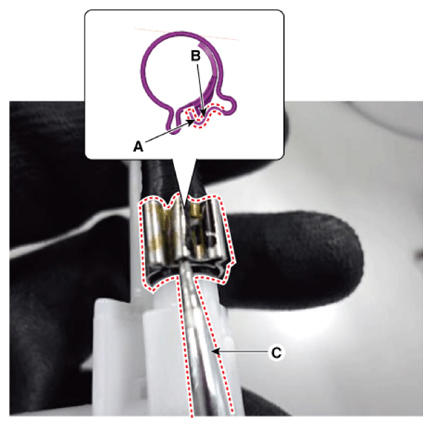

    1. Unhook the clip (A, B) by using an awl (C).
      G13143563Courtesy of KIA MOTORS AMERICA, INC.

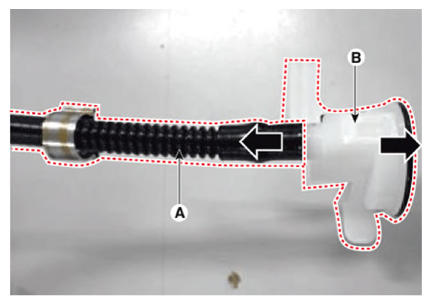

    2. Separate the tube (A) with the assist pump (B) by pulling it
    G13143564Courtesy of KIA MOTORS AMERICA, INC.

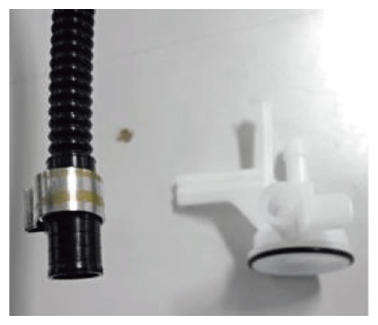

    G13143565Courtesy of KIA MOTORS AMERICA, INC.

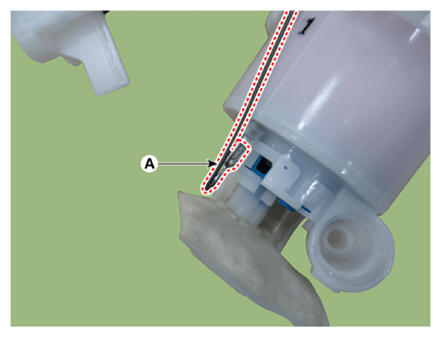

  9. Disconnect the ground (A).
    G13143566Courtesy of KIA MOTORS AMERICA, INC.
  10. Remove the fuel pump motor (B) after releasing the fixing hooks (A).
    G13143567Courtesy of KIA MOTORS AMERICA, INC.
  11. Install in the reverse order of removal.
