Repair Procedures: Replacement

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

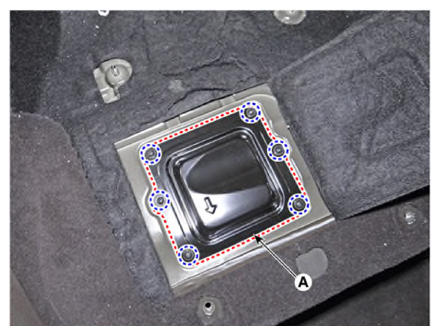

  4. Remove the sub fuel sender service cover (A) after loosening the mounting screws.
    G13143568Courtesy of KIA MOTORS AMERICA, INC.

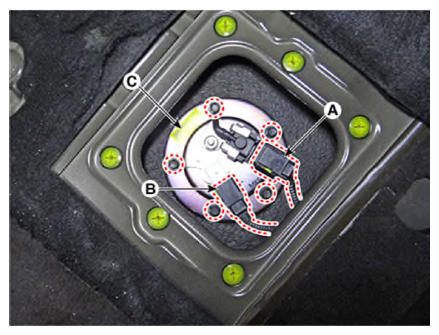

  5. Disconnect the fuel tank pressure sensor connector (A).
  6. Disconnect the sub fuel sender connector (B).
  7. Remove the sub fuel sender (C) from the fuel tank after removing mounting bolts.

    Tightening torque:

    1.9 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.1 lb.ft)

    G13143569Courtesy of KIA MOTORS AMERICA, INC.
  8. Install in the reverse order of removal.
