[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the camshaft position sensor connector.

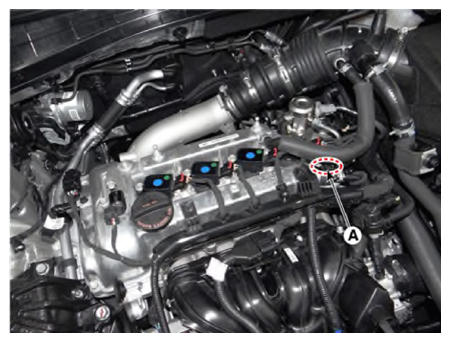

  3. Remove the sensor by loosening the mounting bolt (A).
    G12915407Courtesy of KIA MOTORS AMERICA, INC.
