Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

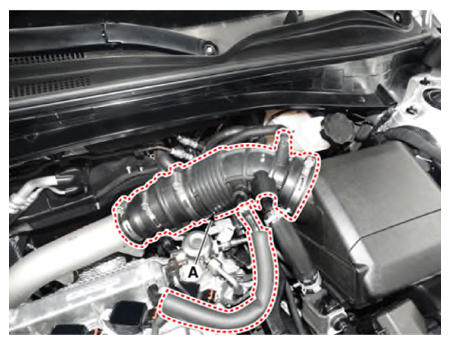

Remove the intake hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

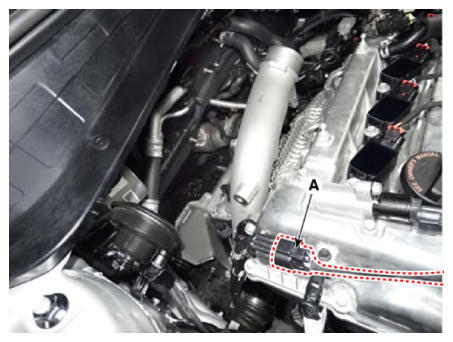

Disconnect the EWGA extension connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

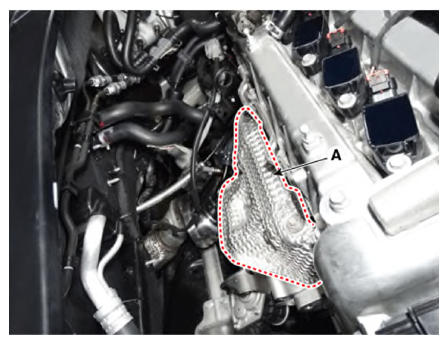

Remove the heat protector (A) after loosening the mounting bolts.
Heat protector mounting bolt:

9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

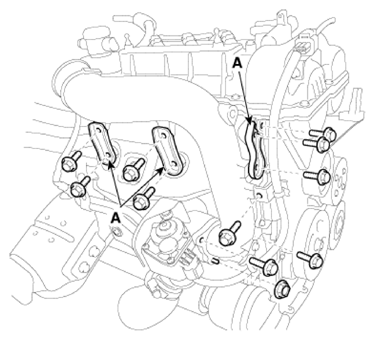

Remove the intake pipe stay (A).
Tightening torque:

M8 Bolt: 18.6 - 23.5 N.m (1.9 - 2.4kgf.m, 13.7 - 17.4 lb.ft)

M10 Bolt: 29.4 - 34.3 N.m (3.0 - 3.5kgf.m, 21.6 - 25.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

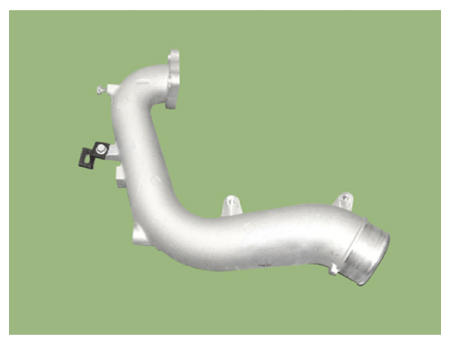

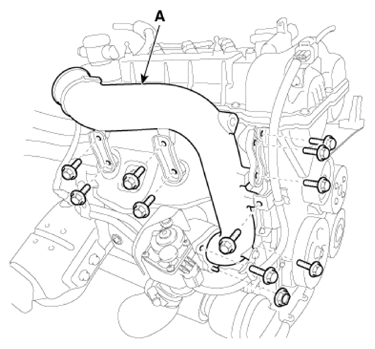

Remove the intake pipe (A).
Tightening torque:

Bolt: 29.4 - 39.2N.m (3.0 - 4.0 kgf.m, 21.6 - 28.9 lb.ft)

Nut: 35.3 - 41.1 N.m (3.6 - 4.2 kgf.m, 26.0 - 30.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

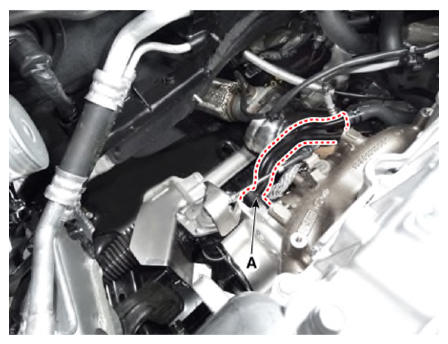

Remove the turbo charger water pipe & hose (A).
Tightening torque:

Flange Bolt: 9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Eye Bolt: 26.4 - 32.3 N.m (2.7 - 3.3 kgf.m, 19.5 - 32.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

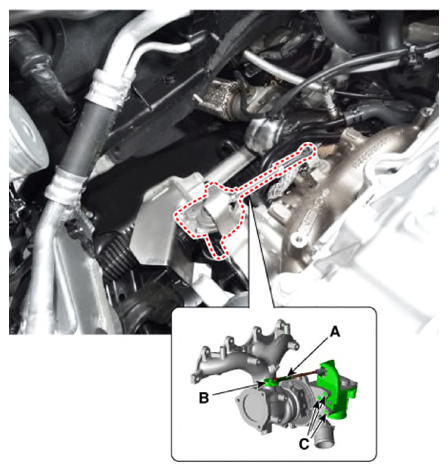

Disconnect the shaft link (A) by removing the C-ring (B).
Remove the electric waste gate actuator by loosening the bolts (C).

Courtesy of KIA MOTORS AMERICA, INC.
