Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the fuel tank.

    (Refer to Fuel Delivery System - "FUEL TANK ")

  3. Disconnect the fuel tank pressure sensor connector.

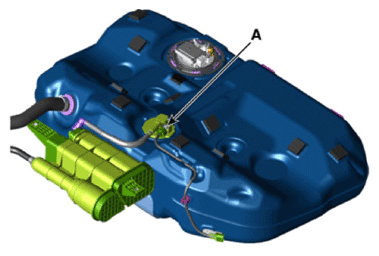

  4. Disconnect the fuel tank pressure sensor (A).
    G12915437Courtesy of KIA MOTORS AMERICA, INC.
