Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

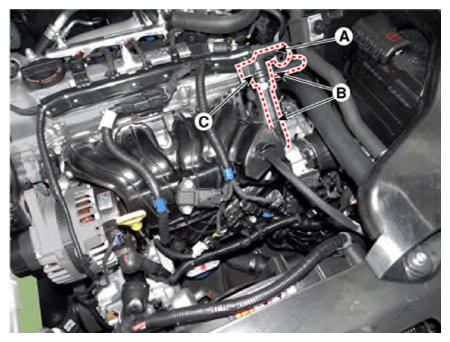

  2. Disconnect the purge control solenoid valve connector (A) and vapor hose (B).
  3. Remove the purge control solenoid valve (C).
    G12915454Courtesy of KIA MOTORS AMERICA, INC.
