Engine Performance
>>
Fuel Delivery
>>
Fuel Delivery System - 2.4L (Except HEV)
>>
Fuel Pump Control Module (FPCM)
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

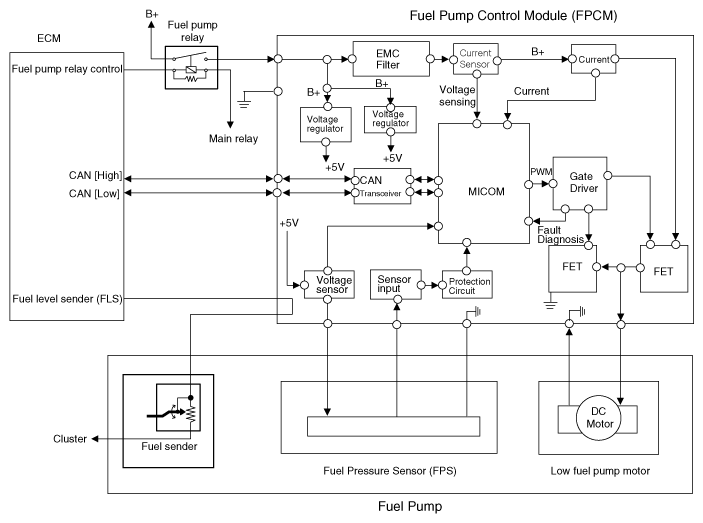

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
