Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

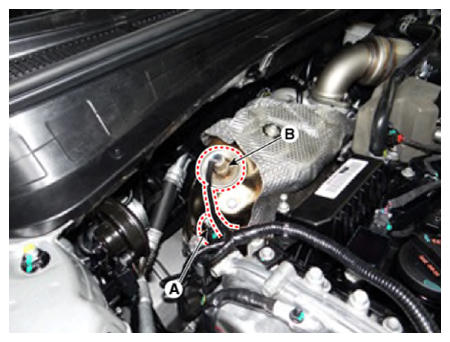

  2. Disconnect the connector (A), and then remove the sensor (B).
G12922317Courtesy of KIA MOTORS AMERICA, INC.
