Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

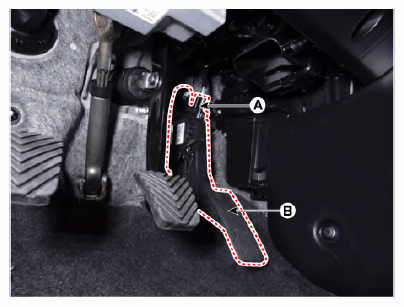

- Disconnect the accelerator position sensor connector (A).
- Remove the installation nuts and then remove the accelerator pedal module (B).
Accelerator pedal module mounting nut:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb.ft)
