Repair Procedures: Inspection: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the air cleaner assemble.
(Refer to Engine Mechanical System - " AIR CLEANER ")

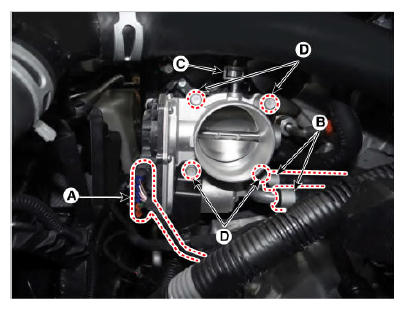

- Disconnect the ETC module connector (A).
- Disconnect the coolant hoses (B) and vapor hose (C).
- Remove the mounting bolts (D), and then remove the ETC module from the engine.
