ETC (Electronic Throttle Control) System: Specifications: Specification

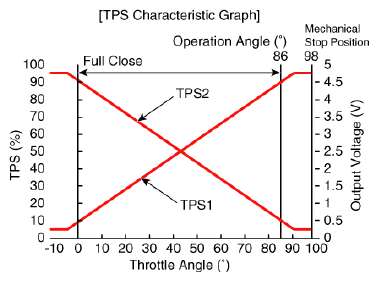

[TPS1]

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C.T	7 - 13	0.35 - 0.65
W.O.T	88.6 - 94	4.43 - 4.70

[TPS2]

Item	Opening Percentage (%)	Output Voltage (V) [Vref = 5V]
C.T	87 - 93	4.35 - 4.65
W.O.T	6 - 11.4	0.3 - 0.57

Courtesy of KIA MOTORS AMERICA, INC.

[ETC Motor]

Item	Specification
Coil Resistance (Ω)	0.3 -100 [20°C(68°F)]
