Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner assemble.

    (Refer to Engine Mechanical System - " AIR CLEANER  ")

  3. Remove the battery.

    (Refer to Engine Electrical System - " BATTERY  ")

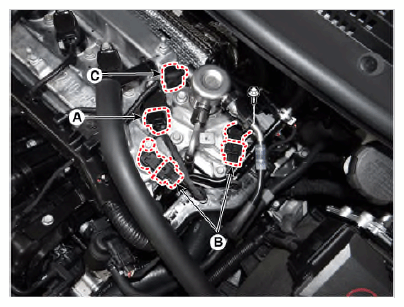

  4. Disconnect the ignition coil connector (A) and CMPS connector (B).
  5. Disconnect the FPCV connector (C).
    G12576543Courtesy of KIA MOTORS AMERICA, INC.

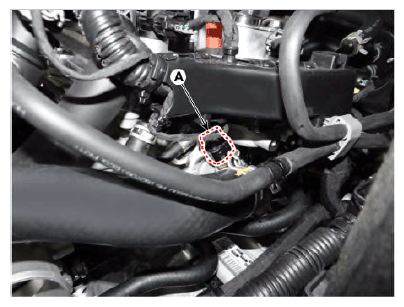

  6. Disconnect the engine coolant temperature sensor connector (A).
    G12576544Courtesy of KIA MOTORS AMERICA, INC.

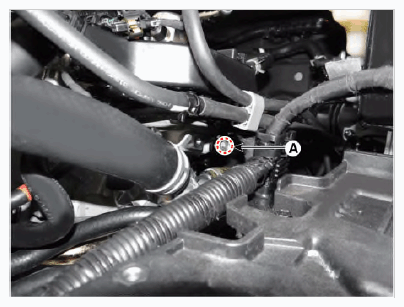

  7. Remove the vacuum pipe mounting bolts (A).
    G12576545Courtesy of KIA MOTORS AMERICA, INC.

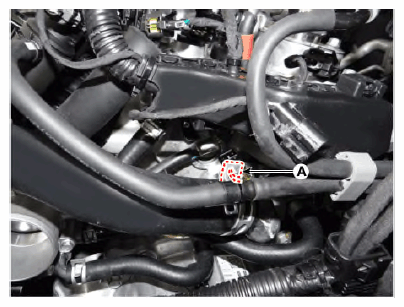

  8. Remove the engine coolant temperature sensor (A).
    G12576546Courtesy of KIA MOTORS AMERICA, INC.
