Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat.

    (Refer to Body - " REAR SEAT ASSEMBLY  ")

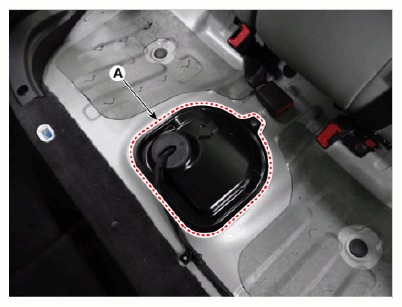

  3. Remove the fuel pump service cover (A).
    G12576606Courtesy of KIA MOTORS AMERICA, INC.

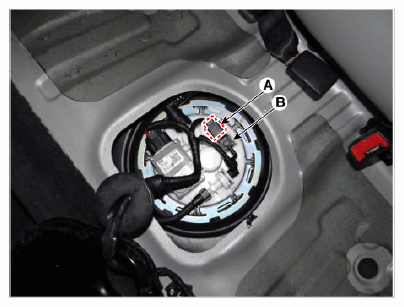

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
    G12576607Courtesy of KIA MOTORS AMERICA, INC.
G12576608Courtesy of KIA MOTORS AMERICA, INC.
