[Bank 1 / Sensor 2]
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Disconnect the connector (A).
- Lift the vehicle.

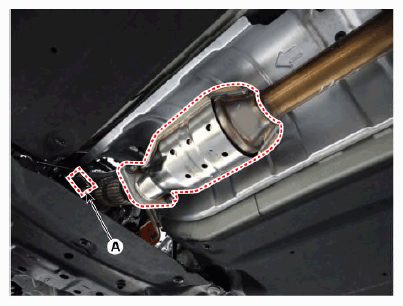

- Remove the sensor (A).
Installation
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- DON'T use a cleaner, spray, or grease to sensing element and connector of the sensor because oil component in them may malfunction the sensor performance.
- Sensor and its wiring may be damaged in case of contacting with the exhaust system (Exhaust Manifold, Catalytic Converter, and so on).
- Install in the reverse order of removal.
Heated oxygen sensor mounting:
39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)
