Repair Procedures: Inspection

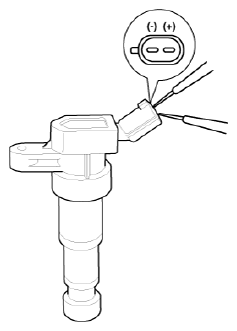

  1. Measure the primary coil resistance between terminals (+) and (-).
    G12576377Courtesy of KIA MOTORS AMERICA, INC.

    Standard value  :0.75Ω ± 15%
