Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the engine cover.

    (Refer to Engine Mechanical System - " ENGINE COVER  ")

  3. Disconnect the ignition coil connector (A).
  4. Remove the ignition coil after loosening the mounting bolt (B).

    Ignition coil mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)

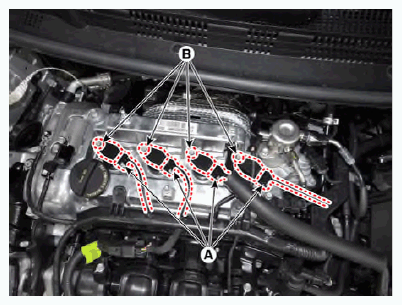

    G12576375Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12576376Courtesy of KIA MOTORS AMERICA, INC.
