Repair Procedures: Inspection

  1. Connect KDS to Data Link Connector(DLC).
  2. Engine "ON"
  3. Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
    G12576898Courtesy of KIA MOTORS AMERICA, INC.

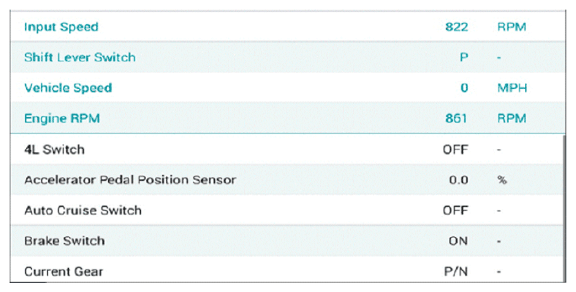

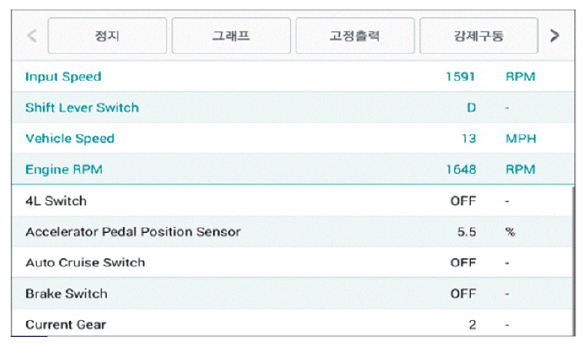

  4. Monitor "Input Speed", "Shift Lever Switch", "Vehicle Speed" and "Engine RPM" parameter in "Current Data" with KDS.
    G12576899Courtesy of KIA MOTORS AMERICA, INC.
    G12576900Courtesy of KIA MOTORS AMERICA, INC.
