Components & Components Location: Components

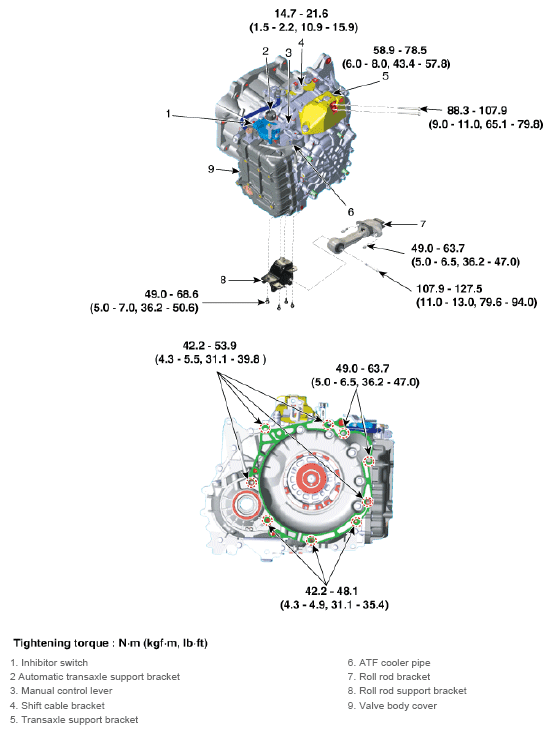

Fig 1: Automatic Transaxle System Components Location With Torque Specification
G12578048Courtesy of KIA MOTORS AMERICA, INC.
