Description & Operation: Description

Output speed sensor uses an electric current type hall sensor in which the current is changed by the magnetic variation.

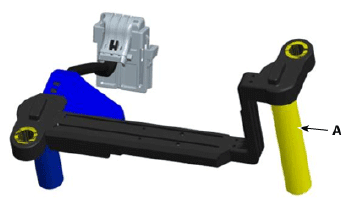

Output speed sensor (A) and input speed sensor are integrated and installed in the transaxle.

Courtesy of KIA MOTORS AMERICA, INC.
