Repair Procedures: Inspection

  1. Connect KDS to Data Link Connector(DLC).
  2. Engine "ON"

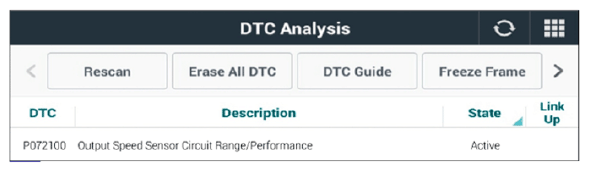

  3. Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
    G12576910Courtesy of KIA MOTORS AMERICA, INC.
  4. Monitor "Output Speed(PG-B)", "Shift Lever Switch", "Vehicle Speed" and "Engine RPM" parameter in "Current Data" with KDS.
    G12576911Courtesy of KIA MOTORS AMERICA, INC.
