Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - " BATTERY  ")

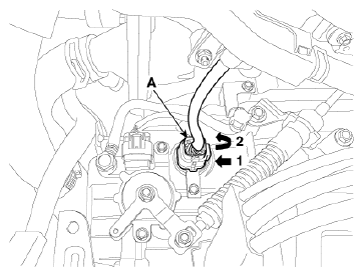

  3. Disconnect the solenoid valve connector (A).
    G12576885Courtesy of KIA MOTORS AMERICA, INC.
  4. Measure the resistance between + terminal (9) and - terminal (13).
    G12576886Courtesy of KIA MOTORS AMERICA, INC.
  5. Check that the resistance is within the specification.
    Item Specification
    Temp.[(°C)°F] / Resistance (kΩ) (-40)-40 / 48.1
    (-20)-4.0 / 15.6
    (0)32.0 / 5.88
    (20)68.0 / 2.51
    (40)104.0 / 1.19
    (60)140.0 / 0.61
    (80)176.0 / 0.32
    (100)212.0 / 0.18
    (120)248.0 / 0.10
    (140)284.0 / 0.06
    (150)302.0 / 0.05
