Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the engine cover.
  3. Disconnect the ignition coil connector (A).
    G12848352Courtesy of KIA MOTORS AMERICA, INC.

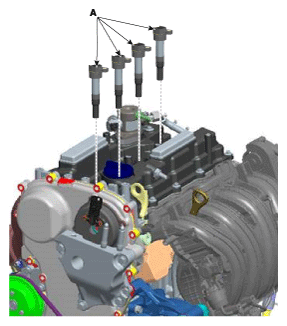

  4. Remove the ignition coil (A).
    G12848353Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12848354Courtesy of KIA MOTORS AMERICA, INC.
