Neutralization Status Check

Connect the cable of KDS to the Data Link Connector in Driver Side Crash Pad Lower Panel.
After IGN ON, select the "Neutralization Mode".

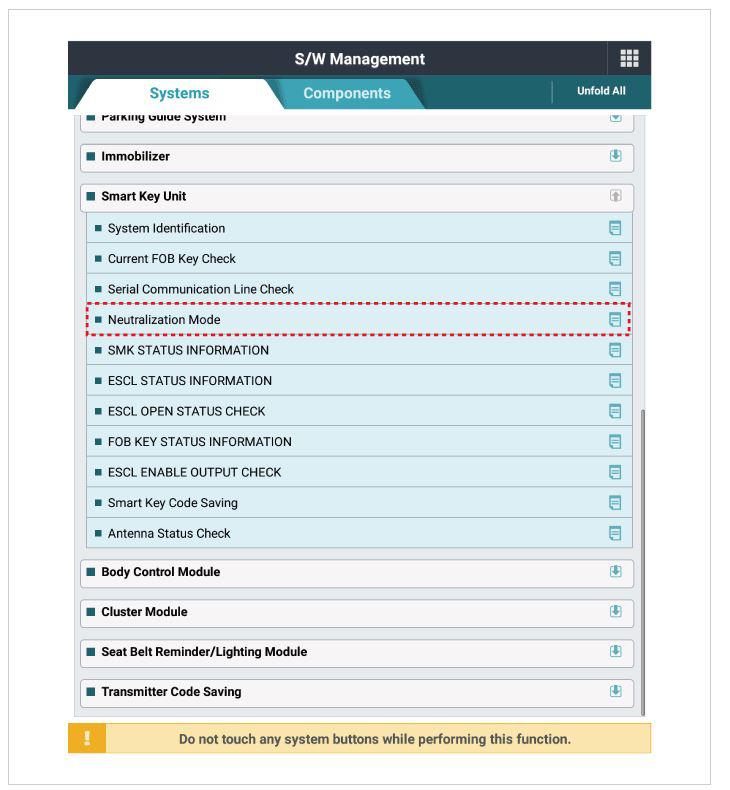

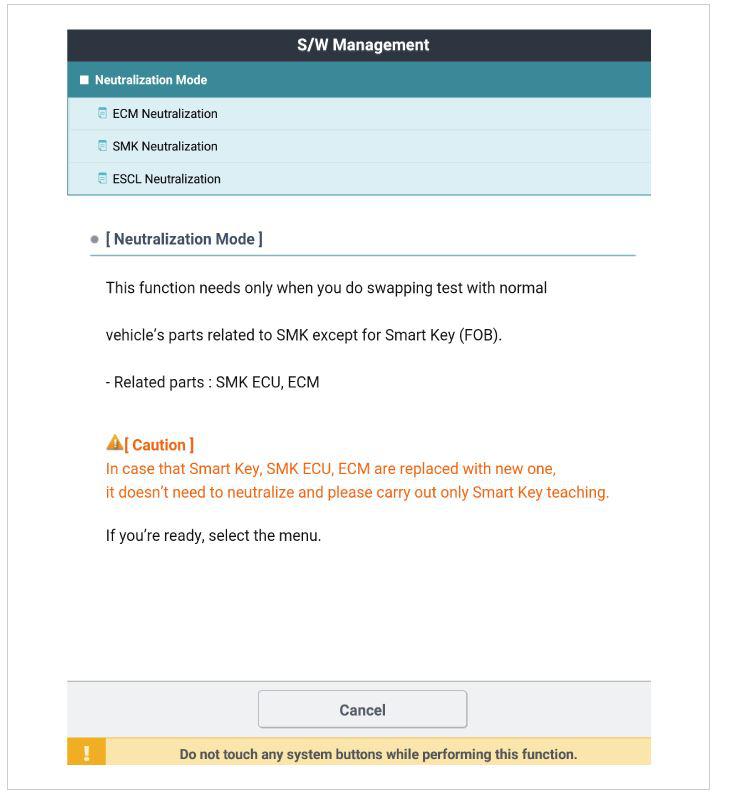

Fig 1: Screen Display - Neutralization Mode (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

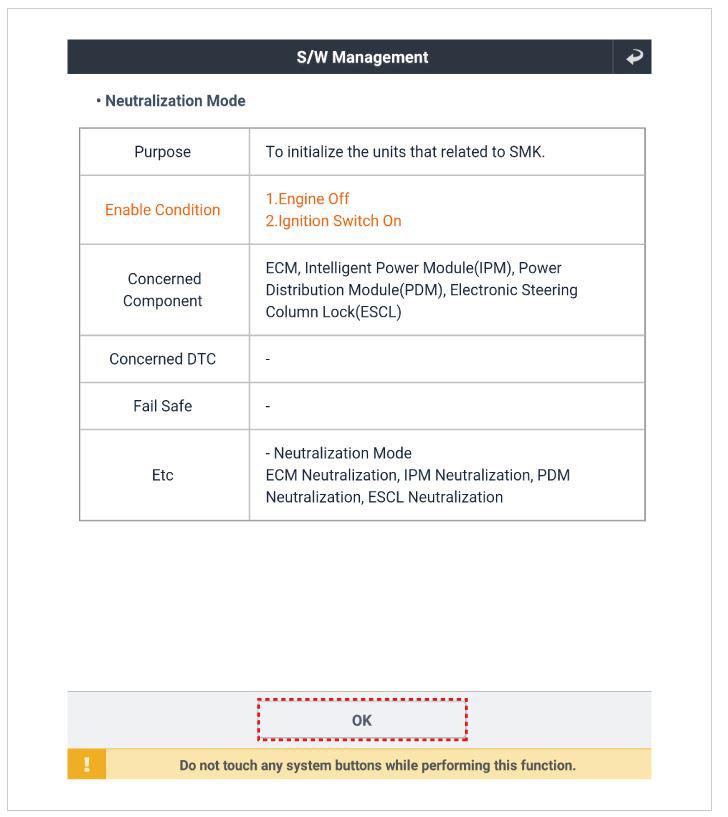

Fig 2: Screen Display - Neutralization Mode (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

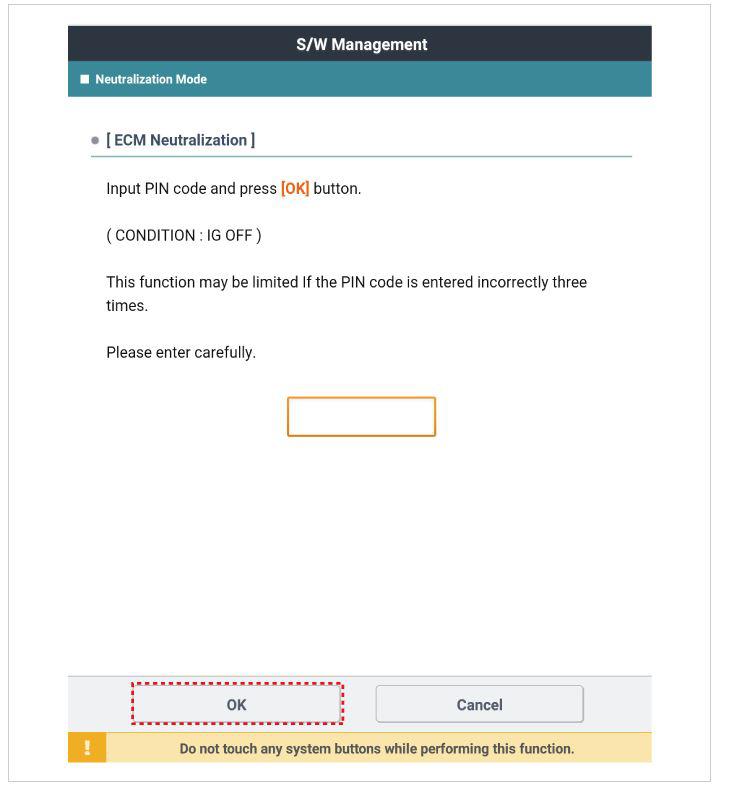

Fig 3: Screen Display - ECM Neutralization (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

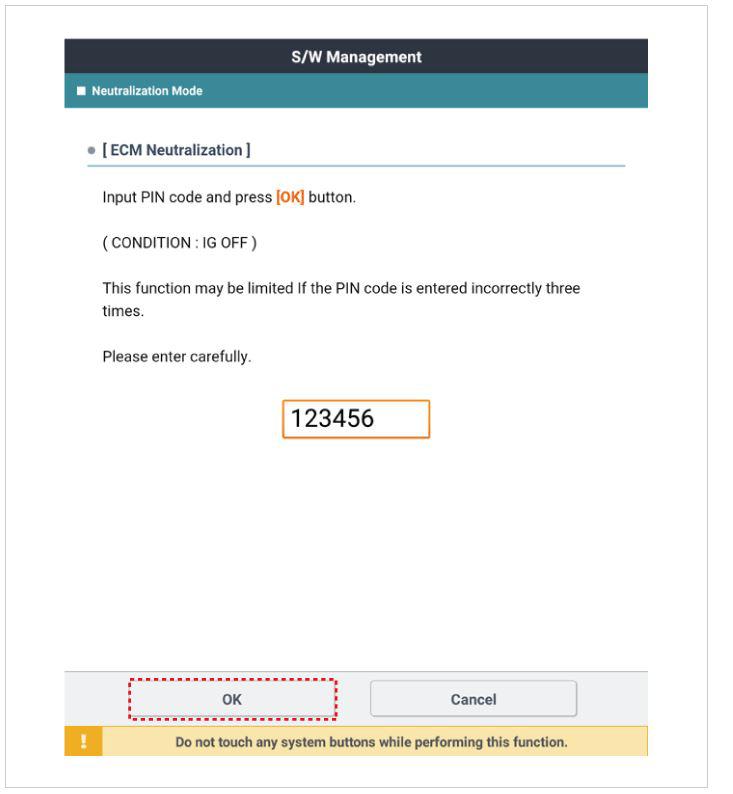

Fig 4: Screen Display - ECM Neutralization (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

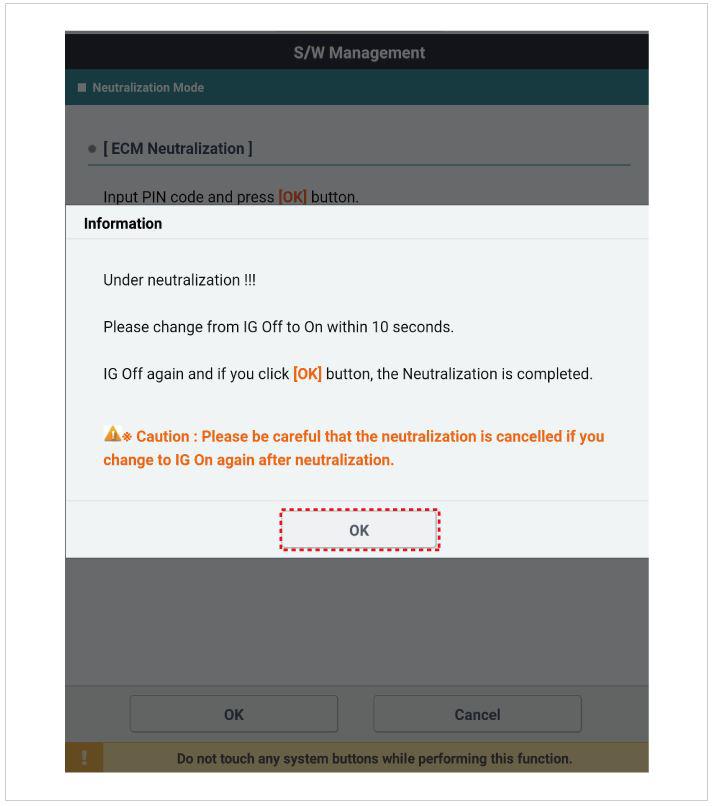

Fig 5: Screen Display - ECM Neutralization (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Screen Display - ECM Neutralization (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

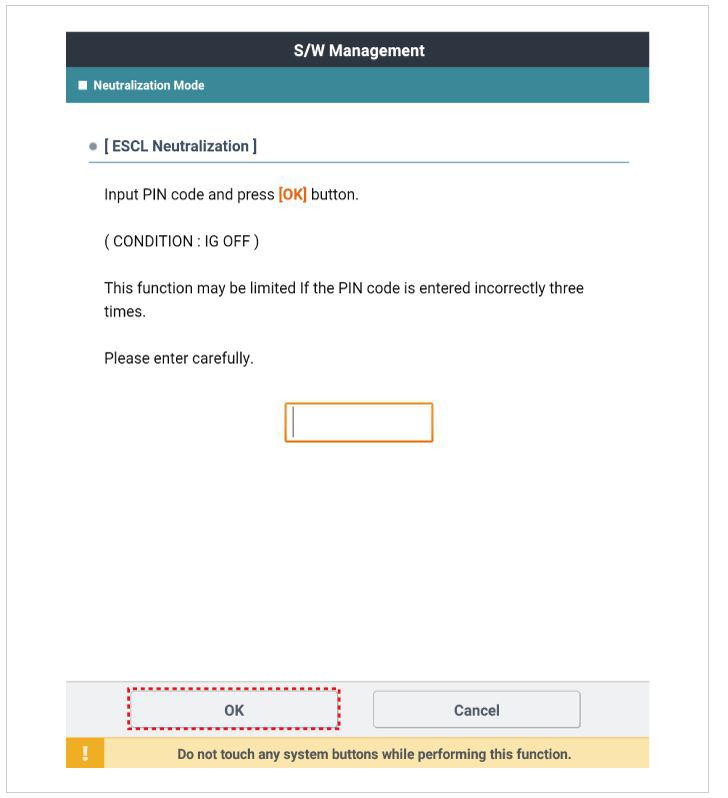

Fig 7: Screen Display - ESCL Neutralization (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

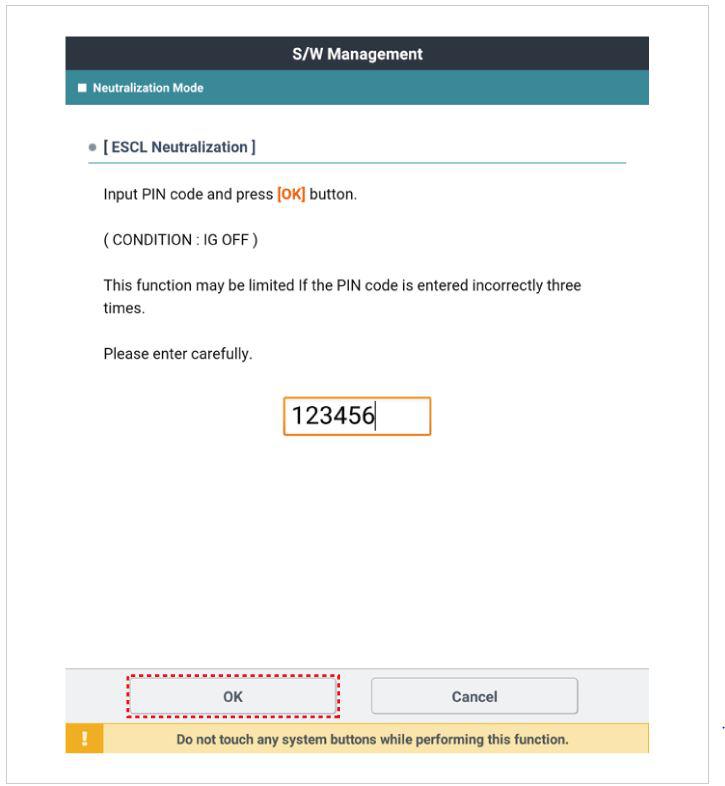

Fig 8: Screen Display - ESCL Neutralization (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

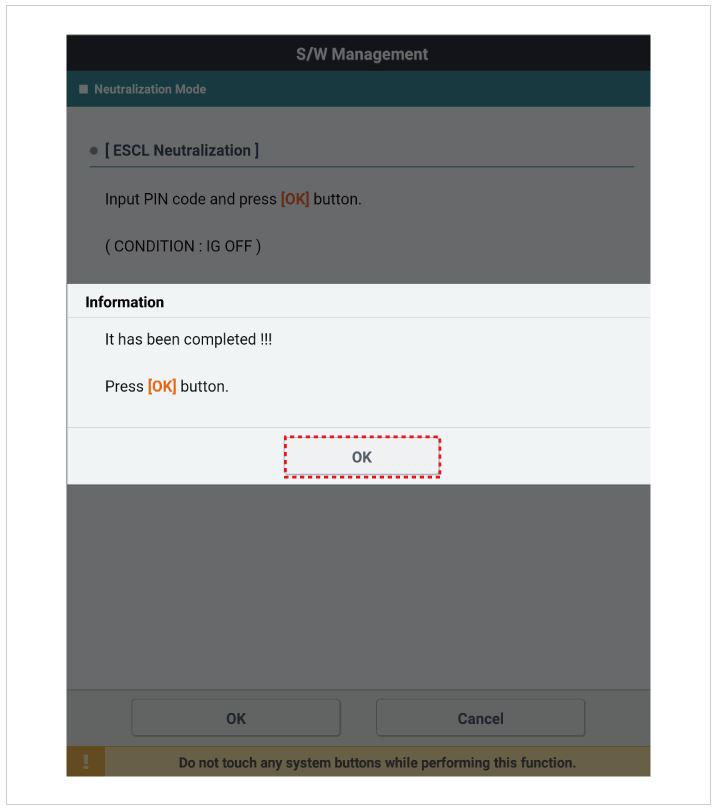

Fig 9: Screen Display - ESCL Neutralization (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

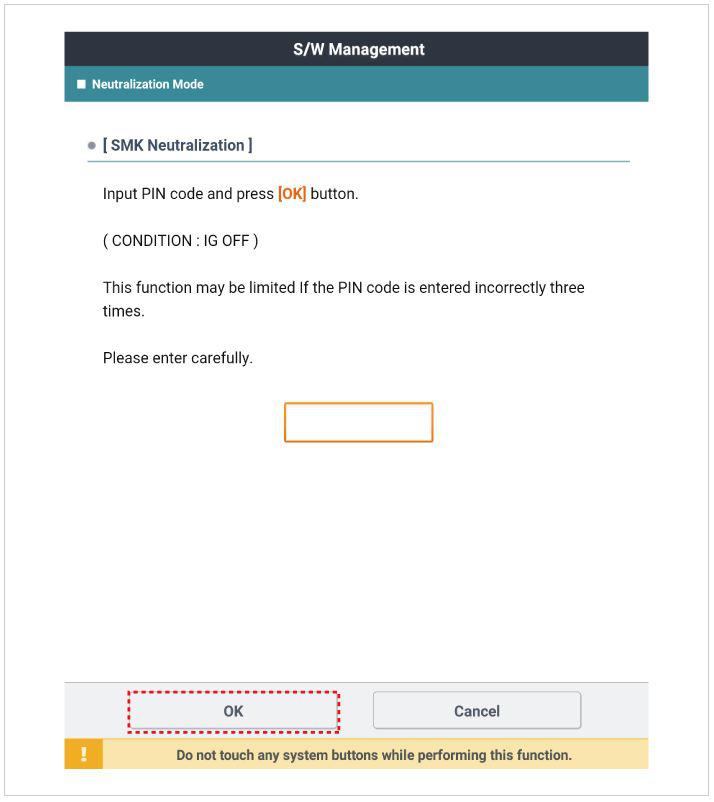

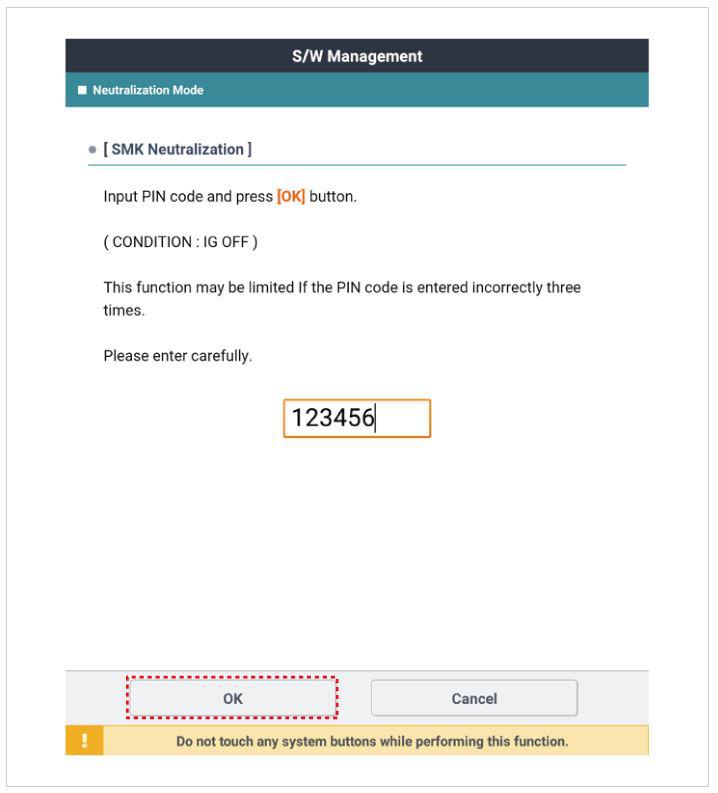

Fig 10: Screen Display - SMK Neutralization (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Screen Display - SMK Neutralization (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Screen Display - SMK Neutralization (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
