Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. After replacing the concerned component.
  2. Ignition "ON" and Engine "OFF".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

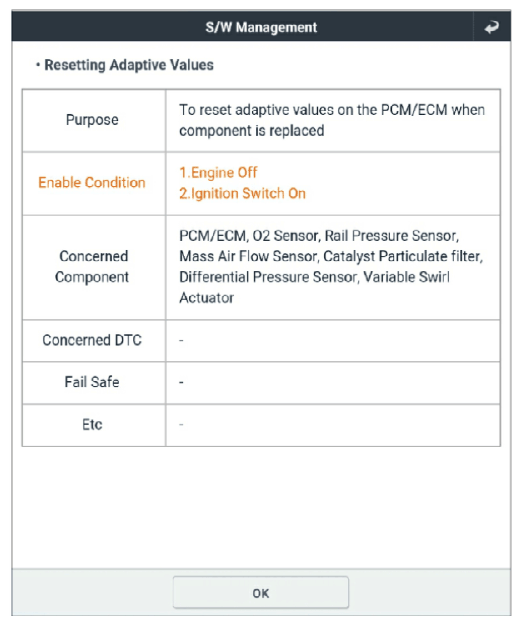

G12782352Courtesy of KIA MOTORS AMERICA, INC.

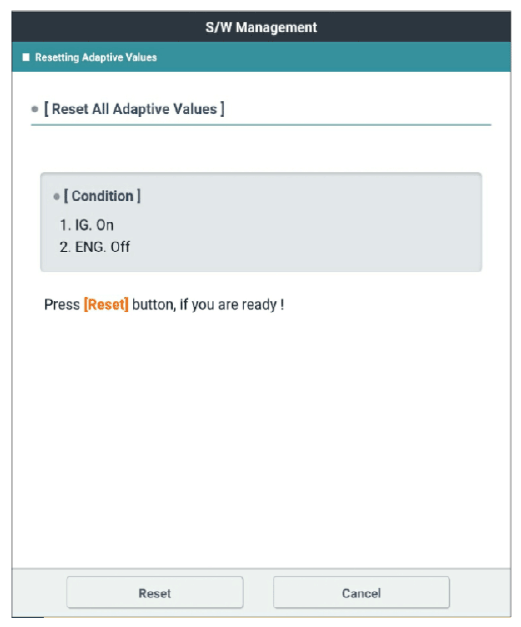

G12782353Courtesy of KIA MOTORS AMERICA, INC.

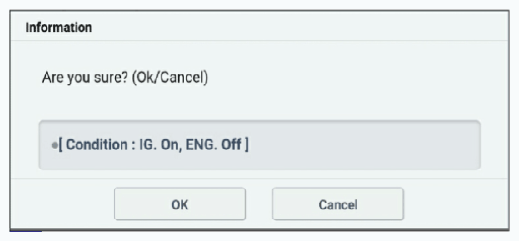

G12782354Courtesy of KIA MOTORS AMERICA, INC.

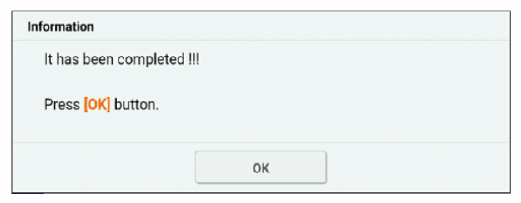

G12782355Courtesy of KIA MOTORS AMERICA, INC.
