Steering Column Module (SCM)

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad lower panel.

    (Refer to " CRASH PAD LOWER PANEL  ")

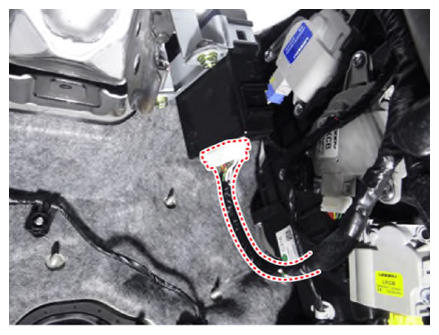

  3. Disconnect the steering column module connector.
    G12791480Courtesy of KIA MOTORS AMERICA, INC.

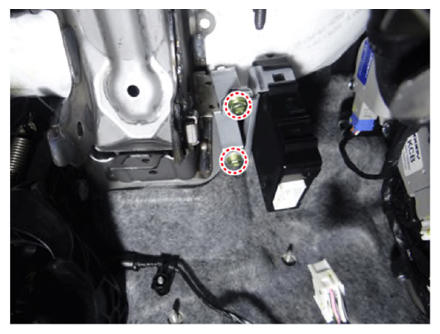

  4. Loosen the steering column module bracket bolts and then remove the steering column module.
    G12791481Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
