Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

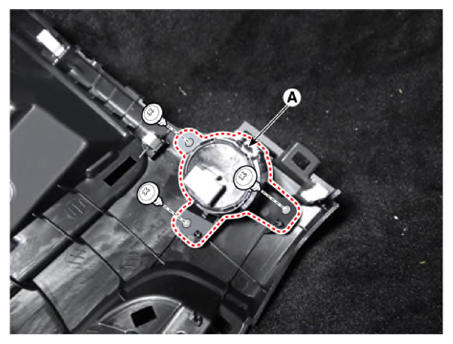

  3. Remove the star/stop button (A) after loosening the mounting screws.
    G13405169Courtesy of KIA MOTORS AMERICA, INC.
