Power Window Main Switch/Power Window Sub Switch

1. Disconnect the negative battery terminal.
2. Remove the front door trim.

   (Refer to Body - "FRONT DOOR TRIM ")

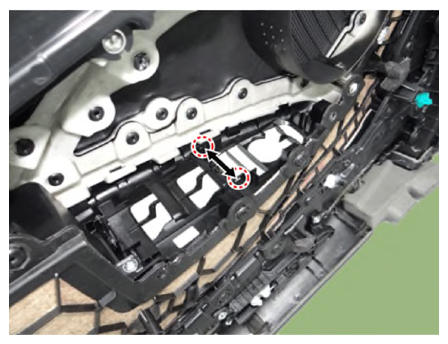

3. Loosen the power window switch mounting screws.

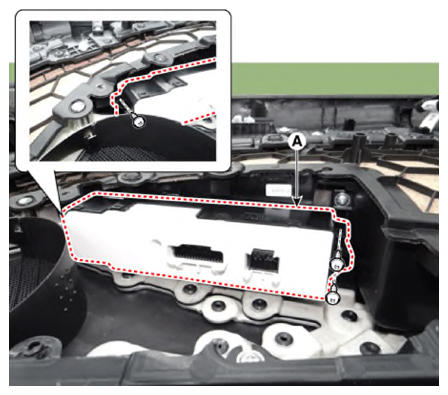

4. Remove the power window switch (A) by pushing the holders in the direction of arrow.
