CVVT Oil Control Valve (OCV)
>>
Troubleshooting
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

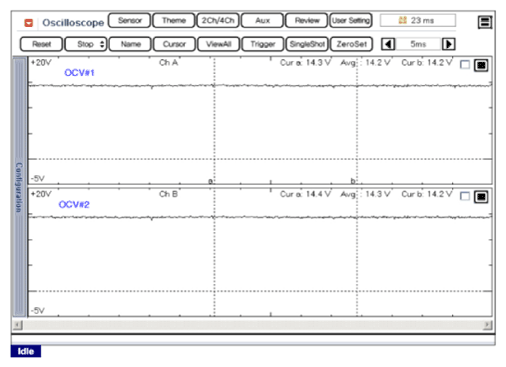

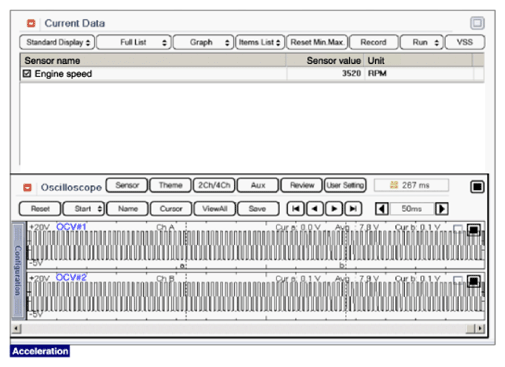

Signal Waveform
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
