[Bank 2/Intake]

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.

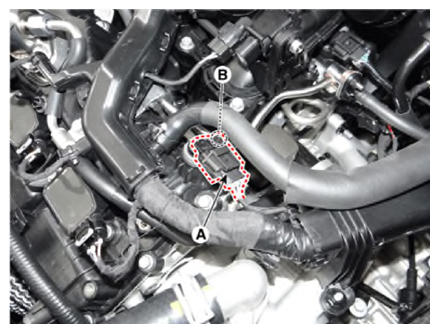

    Crankshaft Position Sensor mounting bolt:

    7.8 → 8.8 Nm (0.8 → 0.9 kgf.m, 5.8 → 6.5 lb.ft)

    G13403413Courtesy of KIA MOTORS AMERICA, INC.
