Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

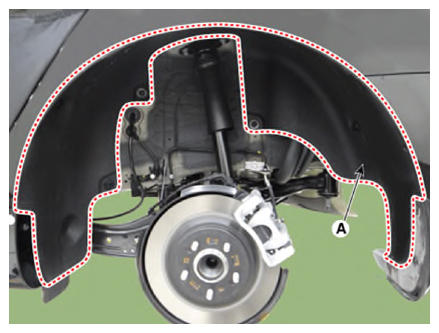

  2. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G13403498Courtesy of KIA MOTORS AMERICA, INC.

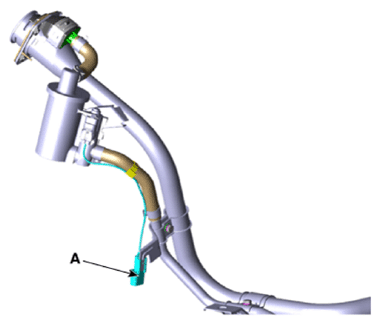

  3. Disconnect the canister close valve connector (A).
    G13403499Courtesy of KIA MOTORS AMERICA, INC.

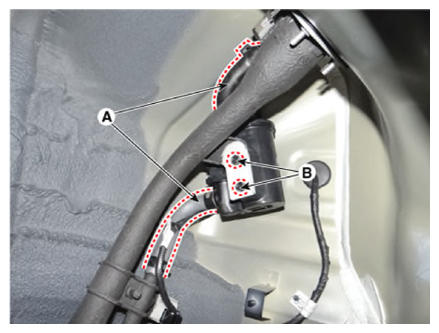

  4. Disconnect the vapor hoses (A).
  5. Remove installation bolts (B) and then remove the fuel tank air filter&CCV.
    G13403500Courtesy of KIA MOTORS AMERICA, INC.

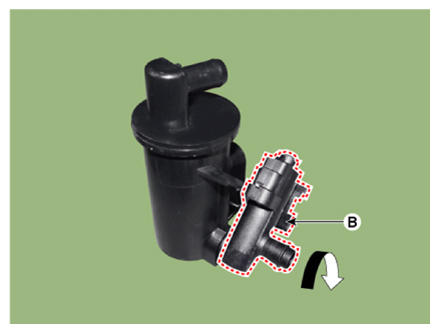

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
    G13403501Courtesy of KIA MOTORS AMERICA, INC.
    G13403502Courtesy of KIA MOTORS AMERICA, INC.
