Components Location

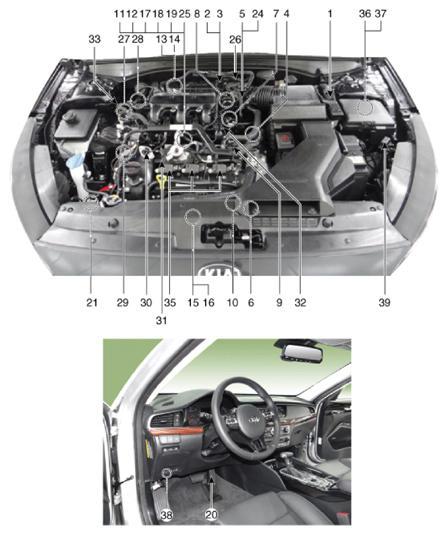

G13403356Courtesy of KIA MOTORS AMERICA, INC.

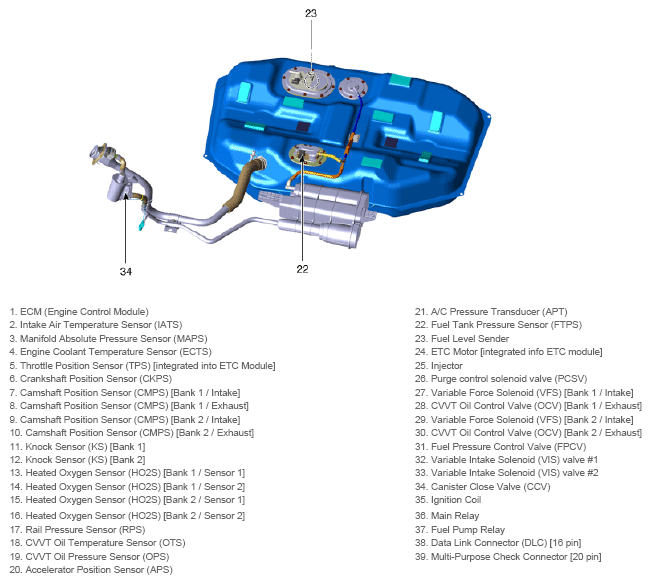

G13403357Courtesy of KIA MOTORS AMERICA, INC.

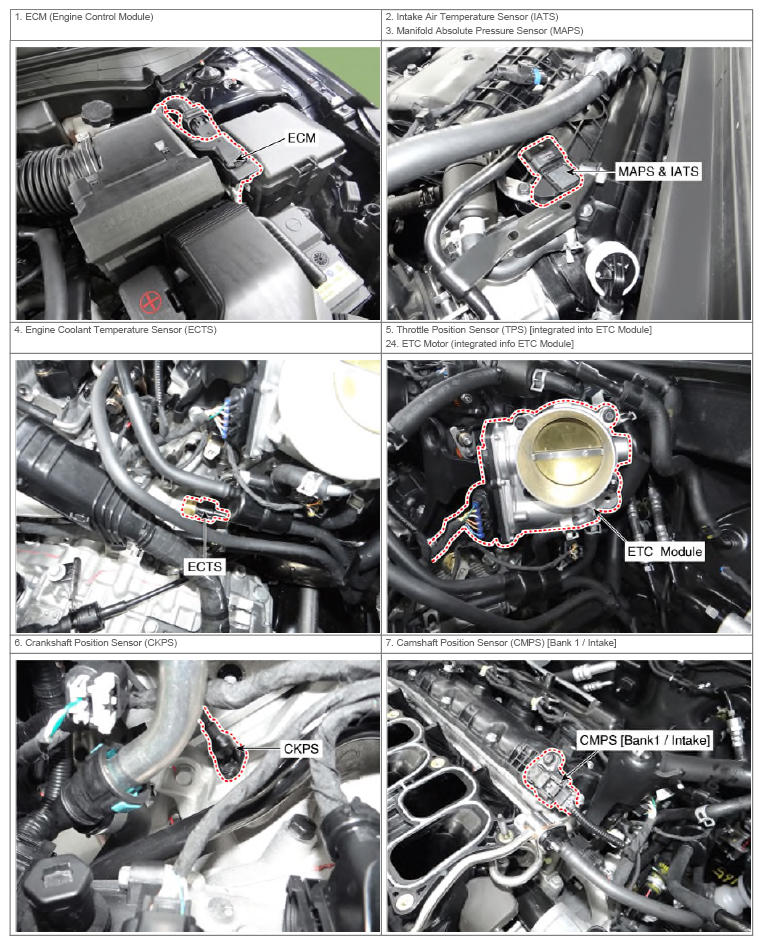

G13403358Courtesy of KIA MOTORS AMERICA, INC.

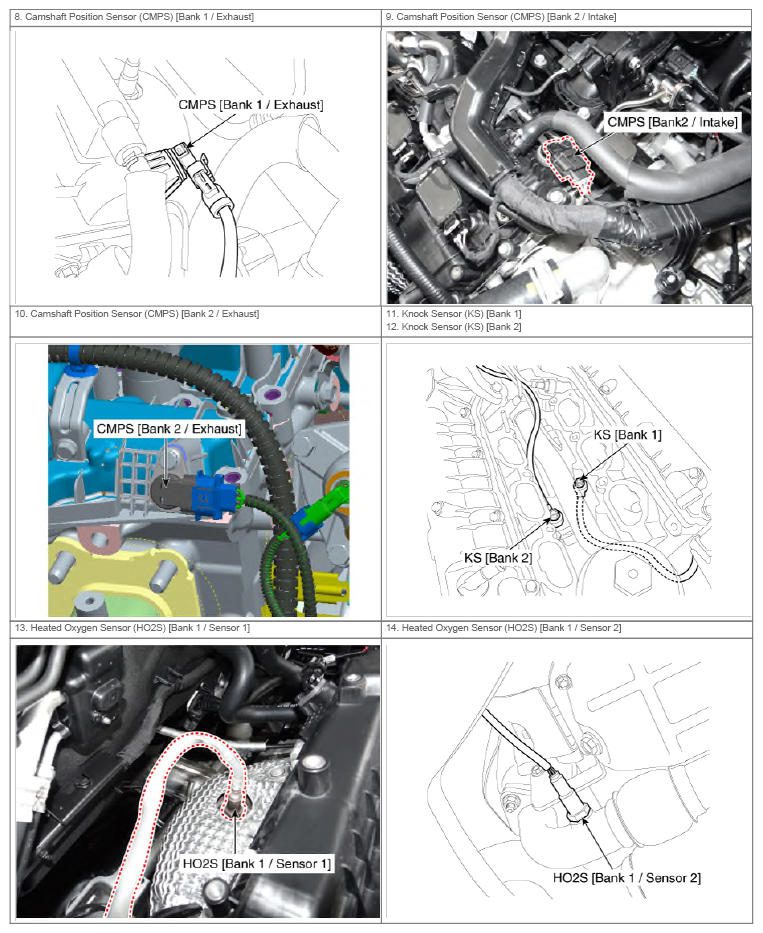

G13403359Courtesy of KIA MOTORS AMERICA, INC.

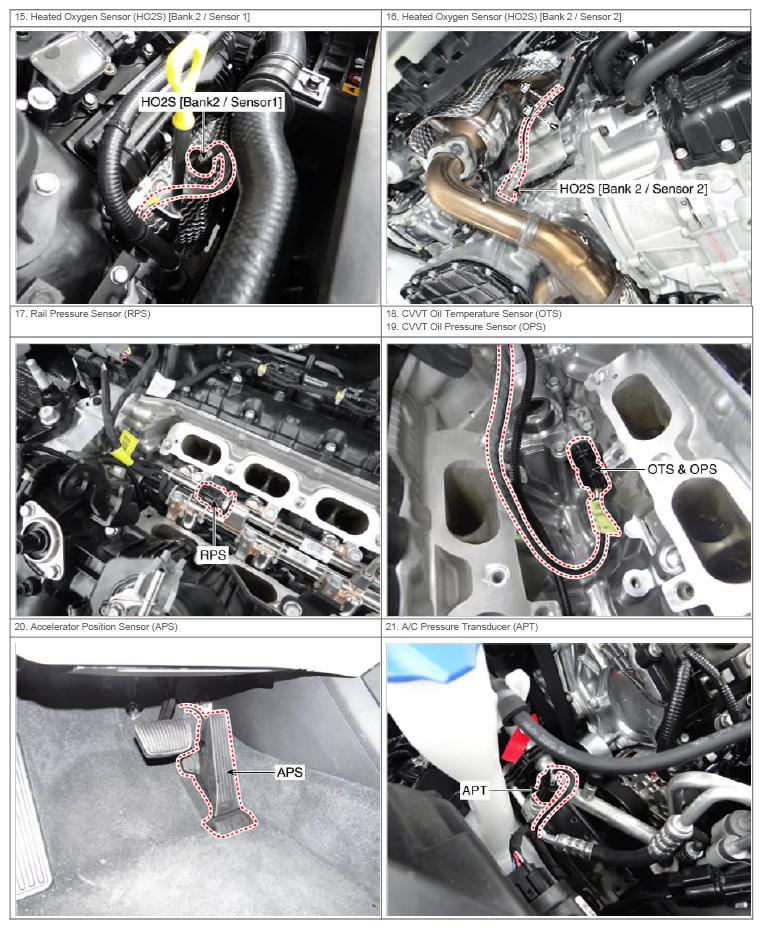

G13403360Courtesy of KIA MOTORS AMERICA, INC.

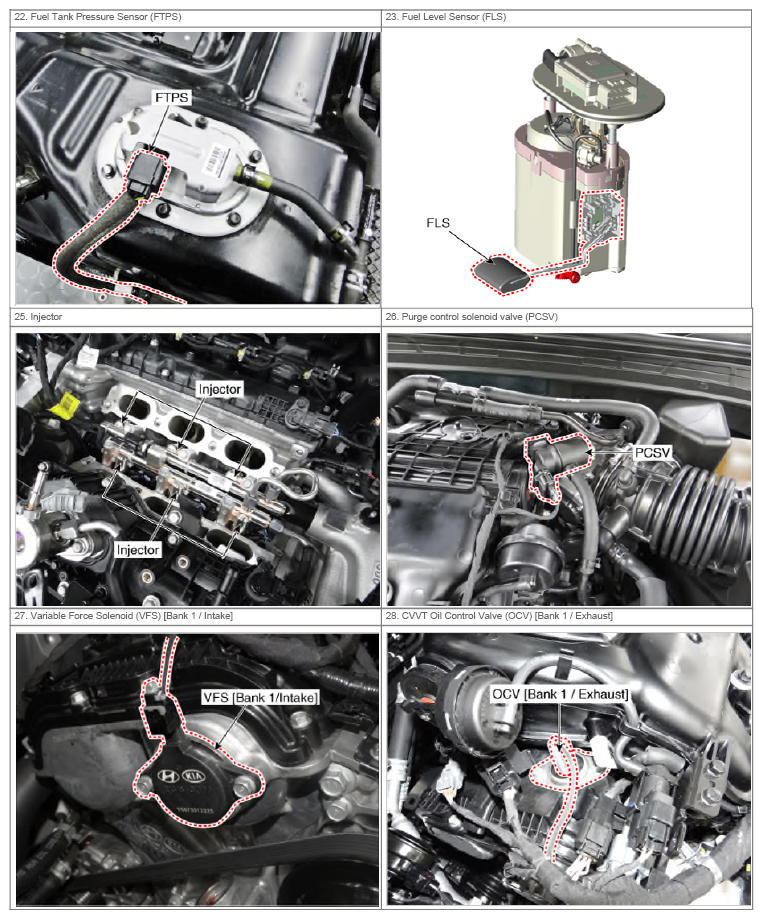

G13403361Courtesy of KIA MOTORS AMERICA, INC.

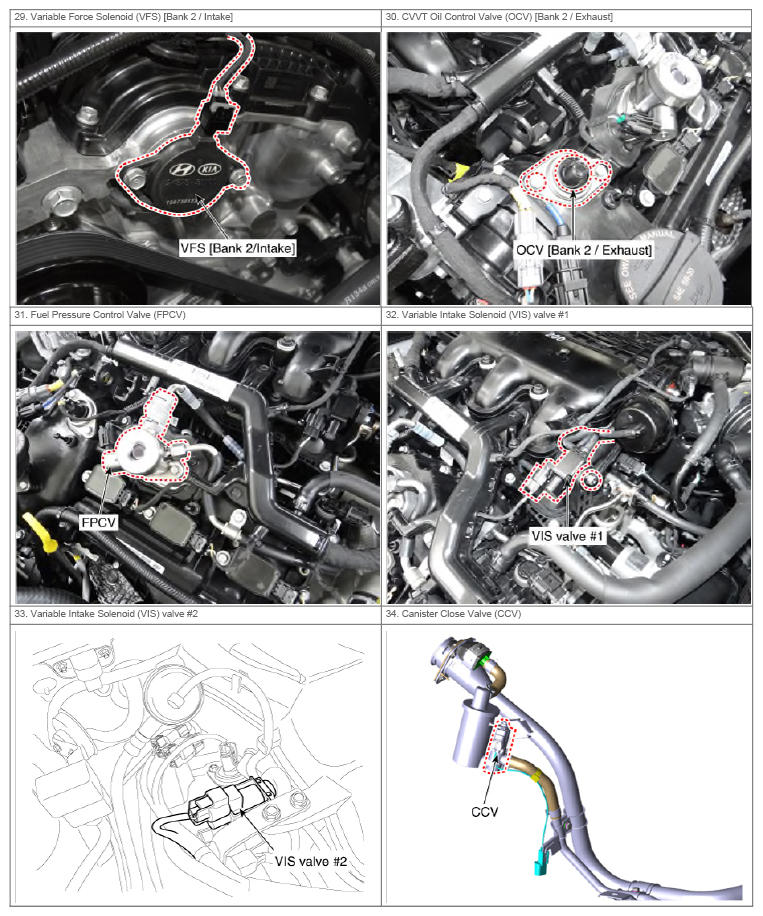

G13403362Courtesy of KIA MOTORS AMERICA, INC.

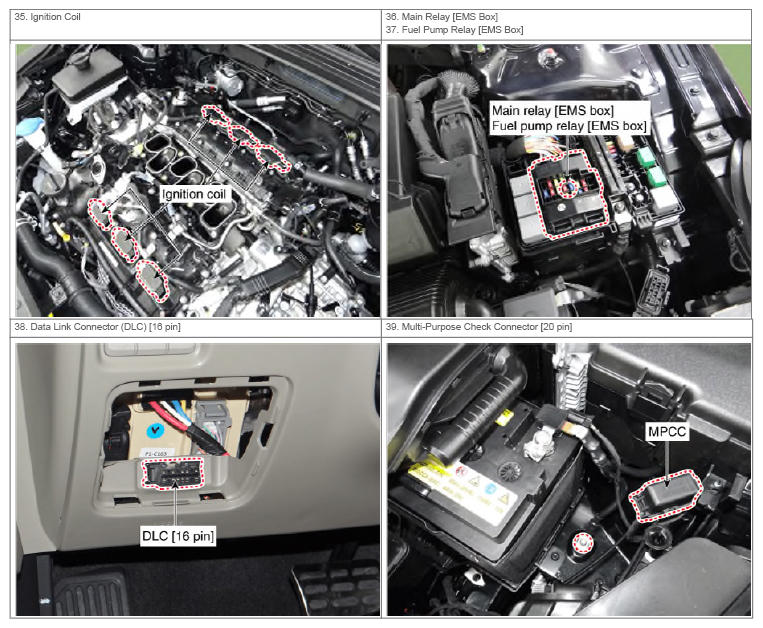

G13403363Courtesy of KIA MOTORS AMERICA, INC.
