Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the engine hanger (A) after loosening the mounting bolt.
    G13403383Courtesy of KIA MOTORS AMERICA, INC.

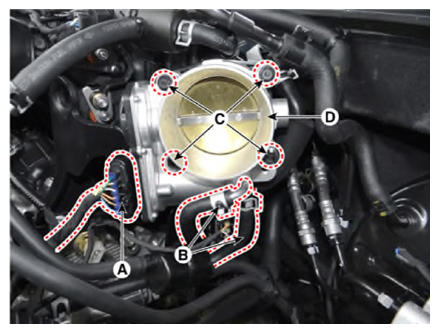

  4. Disconnect the ETC Module connector (A).
  5. Disconnect the coolant hoses (B).
  6. Remove the ETC module (D) after loosening the mounting bolts (C).

    Electronic throttle body mounting bolt:

    14.7-24.5 Nm (1.5-2.5 kgf.m, 10.8-18.1 lb.ft)

    G13403384Courtesy of KIA MOTORS AMERICA, INC.
