Repair Procedures: Removal

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

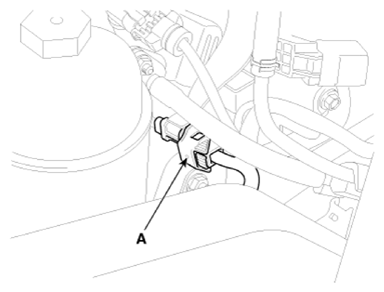

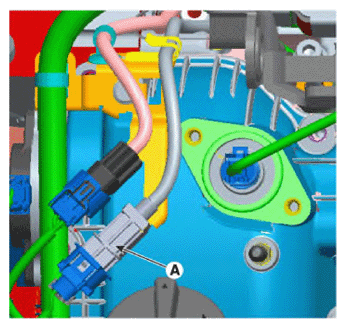

Disconnect the knock sensor connector (A).
[Knock Sensor (Bank 1)]

Courtesy of KIA MOTORS AMERICA, INC.

[Knock Sensor (Bank 2)]

Courtesy of KIA MOTORS AMERICA, INC.
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

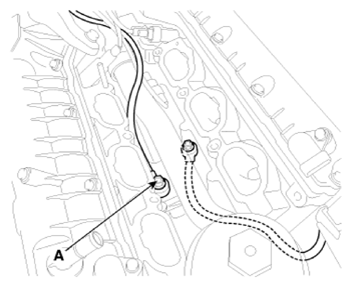

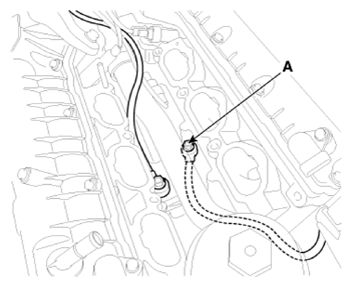

Remove the mounting bolt (A), and then remove the sensor from the cylinder block.
Knock sensor mounting bolt:

15.7-23.5 Nm (1.6-2.4 kgf.m, 11.6 - 17.4 lb.ft)

[Knock Sensor (Bank 1)]

Courtesy of KIA MOTORS AMERICA, INC.

[Knock Sensor (Bank 2)]

Courtesy of KIA MOTORS AMERICA, INC.
