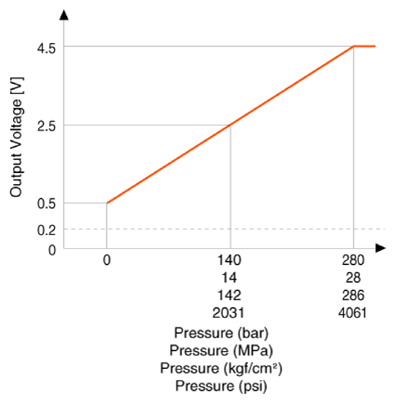

Rail Pressure Sensor (RPS)

Pressure Output Voltage (V) [Vref=5V]
bar [MPa (kgf/cm2, psi)]
0 0 (0, 0) 0.5
140 14(142, 2031) 2.5
280 28 (286, 4061) 4.5
G13403339Courtesy of KIA MOTORS AMERICA, INC.
