Components Location: Notes

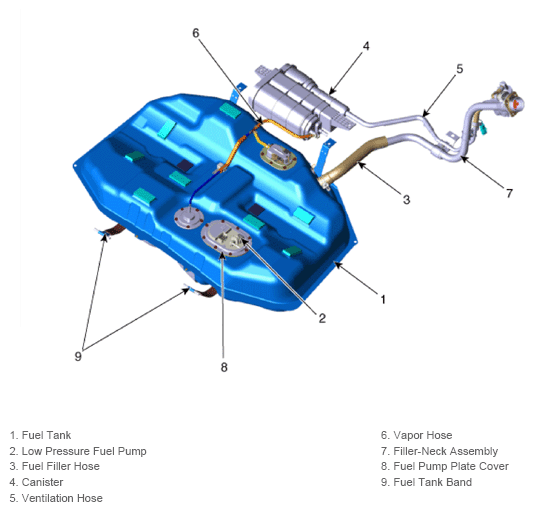

Fuel Tank & Filler-Neck Assembly

G13403503Courtesy of KIA MOTORS AMERICA, INC.

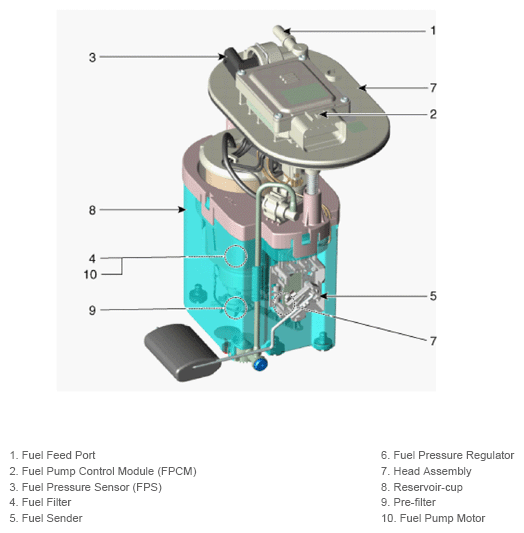

Low Pressure Fuel Pump

G13403504Courtesy of KIA MOTORS AMERICA, INC.
