Repair Procedures: Removal

  1. Open the fuel filler door.
  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

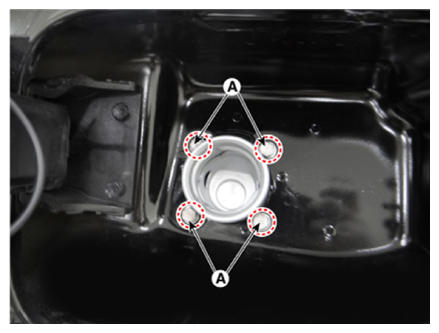

  3. Remove the filler-neck mounting bolt (A).
    G13403580Courtesy of KIA MOTORS AMERICA, INC.
  4. Lift the vehicle.

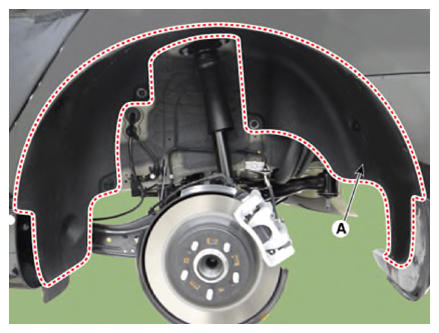

  5. Remove the rear-LH wheel, tire, and the inner wheel house (A).
    G13403581Courtesy of KIA MOTORS AMERICA, INC.

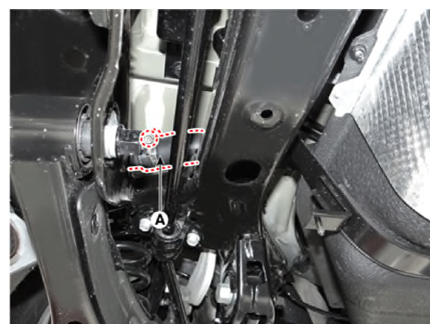

  6. Disconnect the fuel filler hose (A).
    G13403582Courtesy of KIA MOTORS AMERICA, INC.
  7. Disconnect the vapor hose (A).
    G13403583Courtesy of KIA MOTORS AMERICA, INC.
  8. Remove the rear sub frame.

    (Refer to "REPAIR PROCEDURES ").

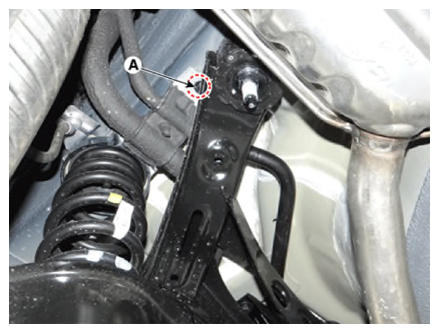

  9. Remove the filler-neck assembly after loosening the mounting bolt (A).
    G13403584Courtesy of KIA MOTORS AMERICA, INC.
