Repair Procedures: Removal

Remove the fuel pump.
(Refer to "Removal ").

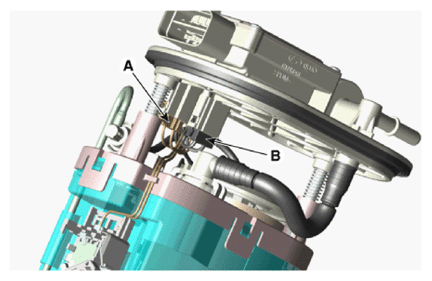

Remove the fuel pump motor connector (A) and fuel sender connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

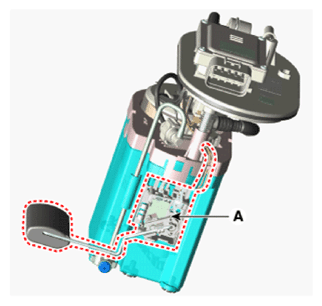

Lift the fixing hook by using a common driver, and then remove the fuel sender (A).

Courtesy of KIA MOTORS AMERICA, INC.

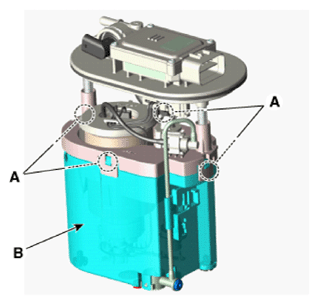

Remove the reservoir cup (B) after releasing the fixing hooks (A).

Courtesy of KIA MOTORS AMERICA, INC.

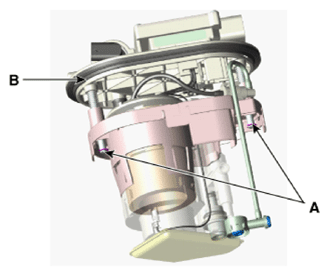

Remove the head assembly (B) after releasing the fixing hooks (A).

Courtesy of KIA MOTORS AMERICA, INC.

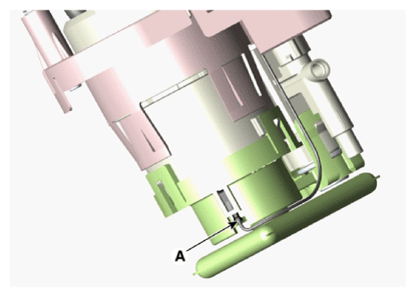

Disconnect the ground cable (A).

Courtesy of KIA MOTORS AMERICA, INC.

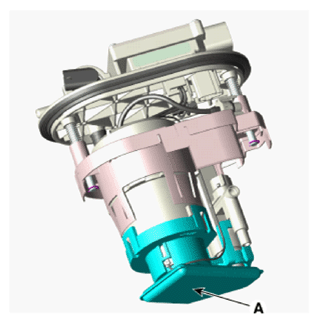

Remove the free-filter (A) after releasing the fixing hooks.

Courtesy of KIA MOTORS AMERICA, INC.

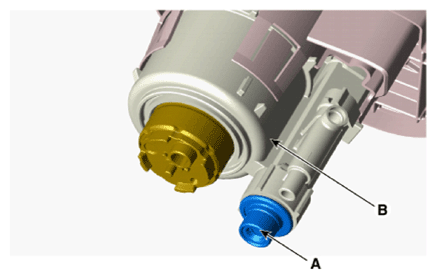

Remove the fuel pressure regulator (A) from the fuel filter (B).

Courtesy of KIA MOTORS AMERICA, INC.
