Repair Procedures: Removal

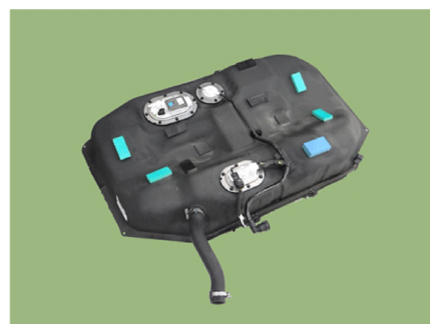

G13403509Courtesy of KIA MOTORS AMERICA, INC.
  1. Release the residual pressure in fuel line.

    (Refer to the Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  3. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

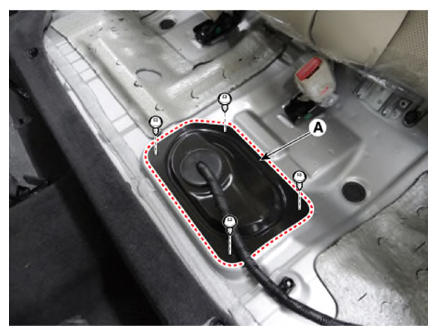

  4. Remove the fuel pump service cover (A) after loosening the mounting screws.
    G13403510Courtesy of KIA MOTORS AMERICA, INC.

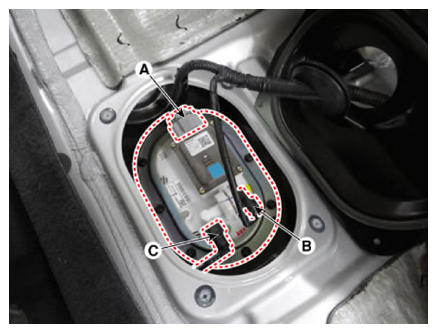

  5. Disconnect the fuel pump control module connector (A), fuel pressure sensor connector (B) and fuel feed tube quick-connector (C).
    G13403511Courtesy of KIA MOTORS AMERICA, INC.
  6. Lift the vehicle.
  7. Remove the center muffler assembly.

    (Refer to Engine Mechanical System - "MUFFLER ")

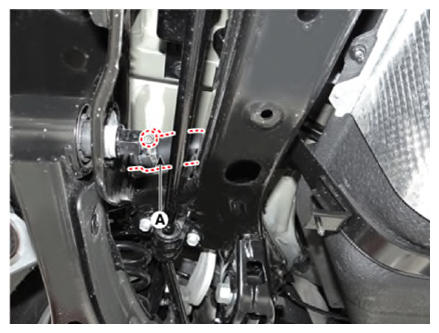

  8. Disconnect the fuel filler hose (A).
    G13403512Courtesy of KIA MOTORS AMERICA, INC.

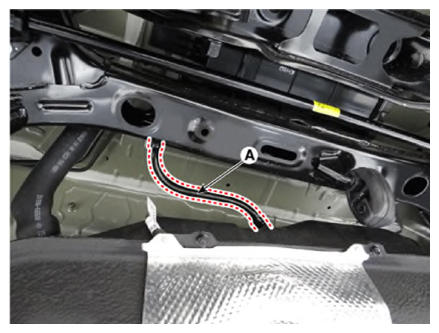

  9. Disconnect the vapor tube quick-connector (A) from the canister.
    G13403513Courtesy of KIA MOTORS AMERICA, INC.

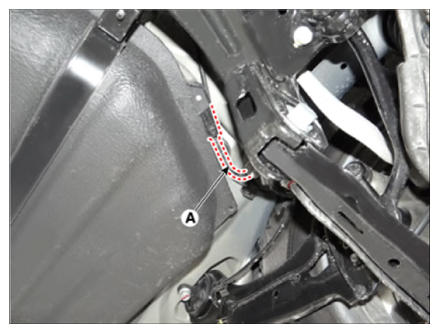

  10. Disconnect the FTPS extension connector (A).
    G13403514Courtesy of KIA MOTORS AMERICA, INC.

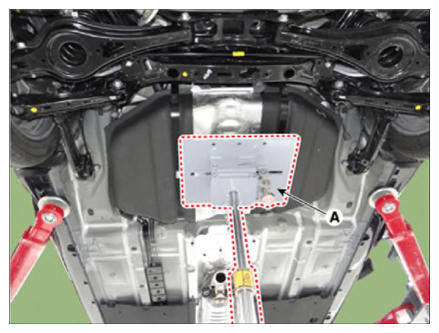

  11. Support the fuel tank on a jack (A).
    G13403515Courtesy of KIA MOTORS AMERICA, INC.

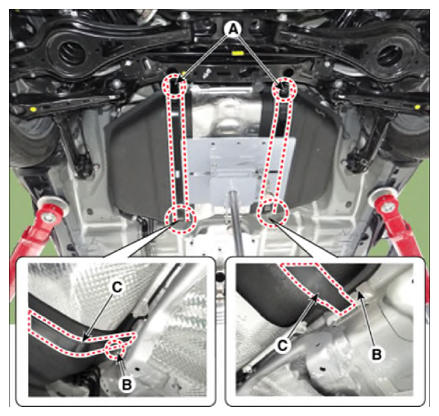

  12. After loosening the rear side fuel tank band mounting nut (A), remove the fuel tank band (C) from the gap (B) between front side fuel tank and body.

    Fuel tank band mounting nut:

    39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

    G13403516Courtesy of KIA MOTORS AMERICA, INC.

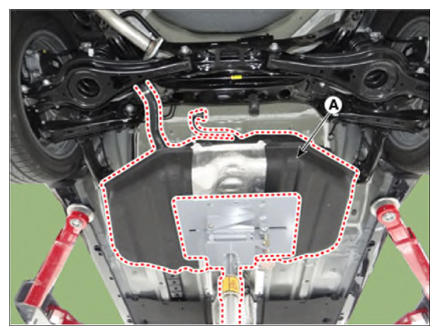

  13. Remove the fuel tank (A).
    G13403517Courtesy of KIA MOTORS AMERICA, INC.
