Charging System: Alternator

Item Specification
Rated voltage 13.5V, 180A
Speed in use 0 - 18, 000 RPM
Voltage regulator IC Regulator built in type
Default regulated voltage (V) [COM terminal] 14.2-14.8 [-40°C(-40°F)]
13.2-15.8 [150°C(302°F)]
Pin 1

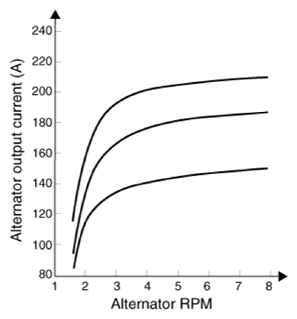

G13403128Courtesy of KIA MOTORS AMERICA, INC.
