Repair Procedures: Removal

NOTE:
  • Be careful that no contaminant enters into spark plug holes.

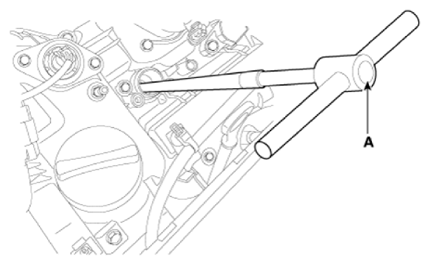

  • Use the spark plug wrench (A) to prevent the damage on the spark plug.
    G13403208Courtesy of KIA MOTORS AMERICA, INC.
NOTE:

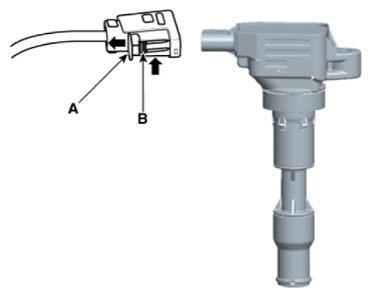

  • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G13403209Courtesy of KIA MOTORS AMERICA, INC.

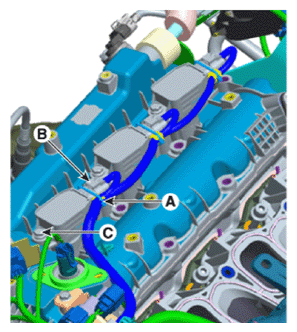

Ignition coil (Cylinder #1) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G13403210Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the spark plug.

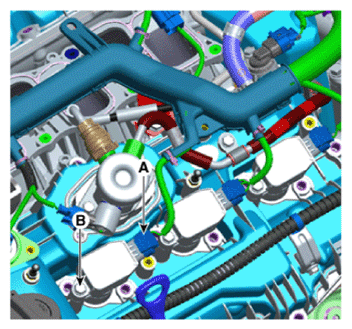

Ignition coil (Cylinder #2) [Bank 2]

  1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G13403211Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the spark plug.

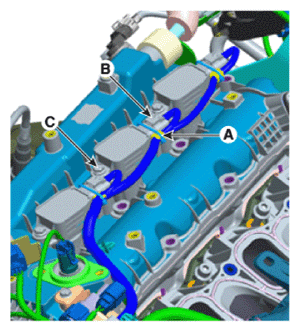

Ignition coil (Cylinder #3) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G13403212Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the spark plug.

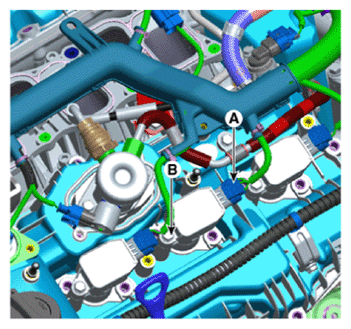

Ignition coil (Cylinder #4) [Bank 2]

  1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G13403213Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the spark plug.

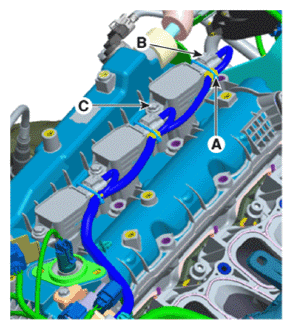

Ignition coil (Cylinder #5) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G13403214Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the spark plug.

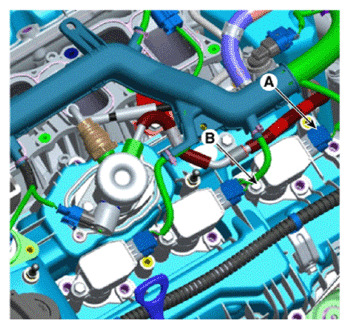

Ignition coil (Cylinder #6) [Bank 2]

  1. Turn the ignition switch off and disconnect the battery negative (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G13403215Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the spark plug.
