Repair Procedures: Removal
- Shift the gear to "N" range and turn ignition OFF.
- Disconnect the battery negative (-) cable.
- Remove the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")

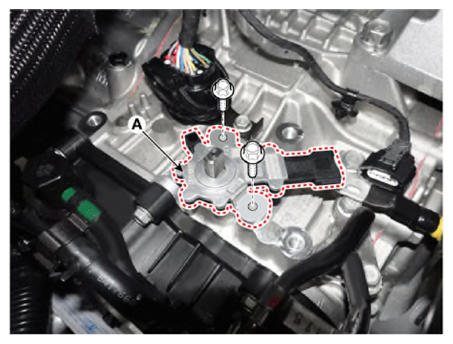

- After disconnecting the connector, remove the position sensor (A) by loosening the bolts.
