Repair Procedures: Removal

Shift the gear to "N".

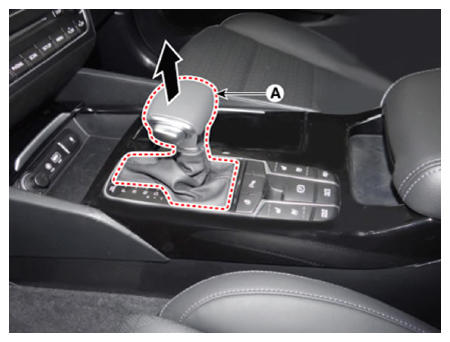

Remove the knob & boots (A) by pulling it in the direction of arrow after removing the boots from the console upper cover.

Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

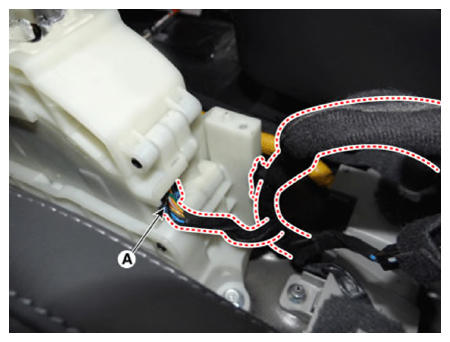

Disconnect the main connector (A) and then remove the wiring fixing clip from the shift lever.

Courtesy of KIA MOTORS AMERICA, INC.

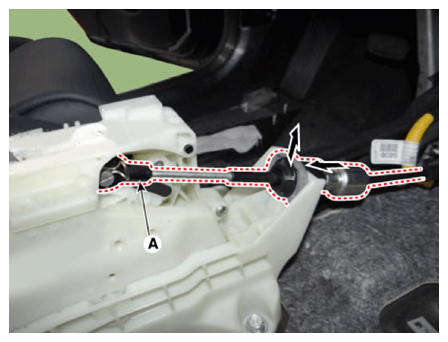

Remove the shift cable (A) after separating the snap pin.

Courtesy of KIA MOTORS AMERICA, INC.

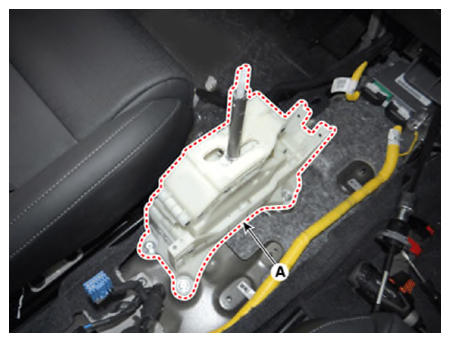

Remove the shift lever assembly (A).
Tightening torque:

8.8-13.7 Nm (0.9- 1.4 kgf.m, 6.5-10.1 lb.ft)
