Repair Procedures: Removal

  1. Drain the coolant.

    (Refer to Engine Mechanical System - "COOLANT ")

  2. Remove the air duct and the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Perform the procedures below according to shift lever type.

    SBW (Shift By Wire)

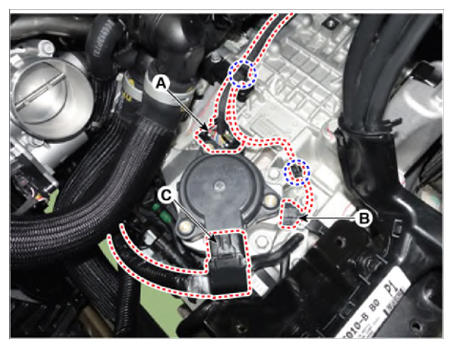

    1. Disconnect the connectors (A, B, C) and remove the wiring fixing clip.
      1. Main connector
      2. Position sensor connector
      3. Electronic shift actuator
        G13403709Courtesy of KIA MOTORS AMERICA, INC.

    SBC (Shift By Cable)

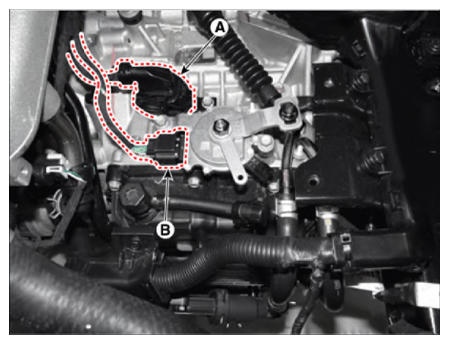

    1. Disconnect the position switch connector (A) and main connector (B).
      G13403710Courtesy of KIA MOTORS AMERICA, INC.

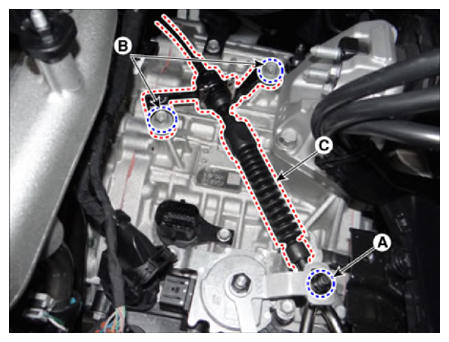

    2. Remove the shift cable (C) by loosening the nut (A) and bolts (B).

      Tightening torque:

      1. 9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb.ft)
      2. 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)
        G13403711Courtesy of KIA MOTORS AMERICA, INC.

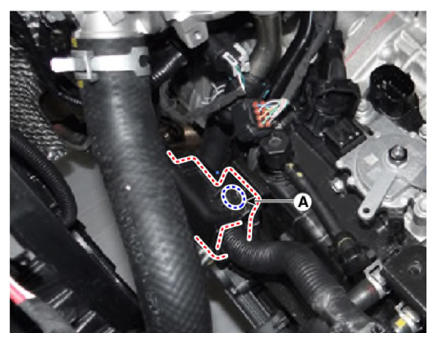

  5. Loosen the wiring bracket mounting bolt (A).
    G13403712Courtesy of KIA MOTORS AMERICA, INC.

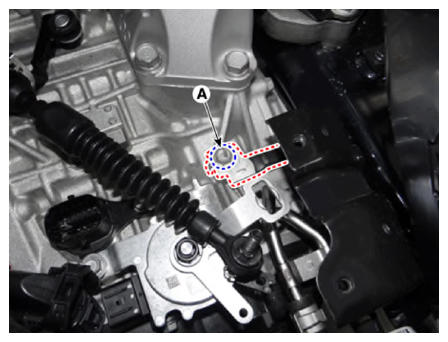

  6. Remove the ground line after loosening the bolt (A).
    G13403713Courtesy of KIA MOTORS AMERICA, INC.

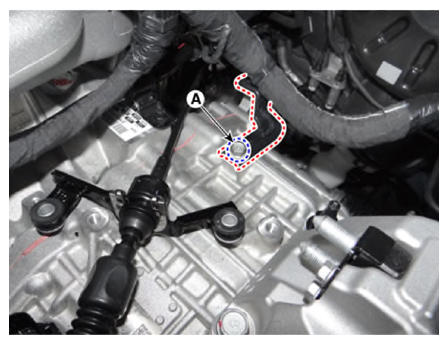

  7. Remove the wiring bracket loosening the bolt (A).

    Tightening torque:

    14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb.ft)

    G13403714Courtesy of KIA MOTORS AMERICA, INC.

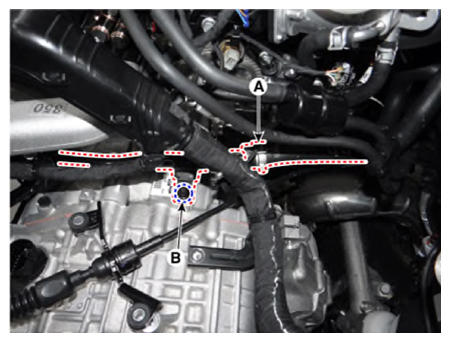

  8. Separate the coolant hose (A) and then remove the coolant pipe bracket mounting bolt (B).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13403715Courtesy of KIA MOTORS AMERICA, INC.

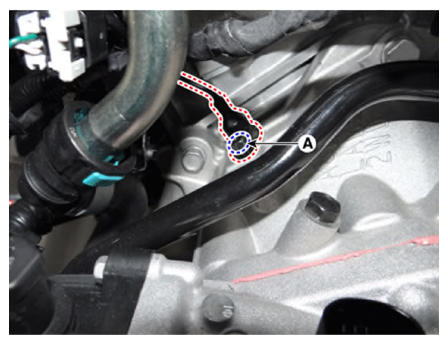

  9. Remove the CKP sensor (A) loosening the bolt.

    Tightening torque:

    6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

    G13403716Courtesy of KIA MOTORS AMERICA, INC.

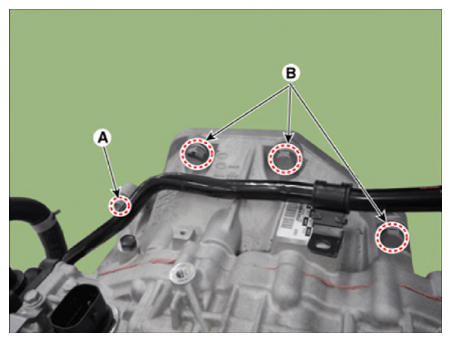

  10. Remove the transaxle upper mounting bolts (A, B).

    Tightening torque:

    1. 32.4 ~ 49.0 N.m (3.3 ~ 5.0 kgf.m, 23.9 ~ 36.2 lb-ft)
    2. 63.7 ~ 83.4 N.m (6.5 ~ 8.5 kgf.m, 47.0 ~ 61.5 lb-ft)
    G13403717Courtesy of KIA MOTORS AMERICA, INC.

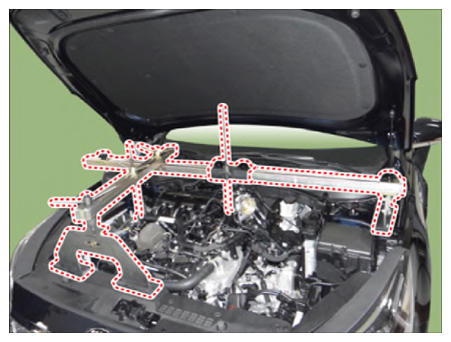

  11. Assemble the engine support fixture on the engine room.

    (Refer to Special Service Tools - "ENGINE SUPPORT FIXTURE ASSEMBLY DRAWING ")

    G13403718Courtesy of KIA MOTORS AMERICA, INC.

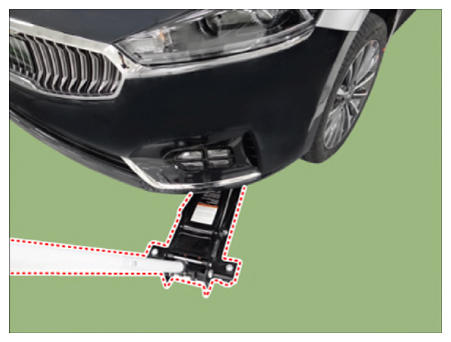

  12. Support the transaxle on a jack.
    G13403719Courtesy of KIA MOTORS AMERICA, INC.

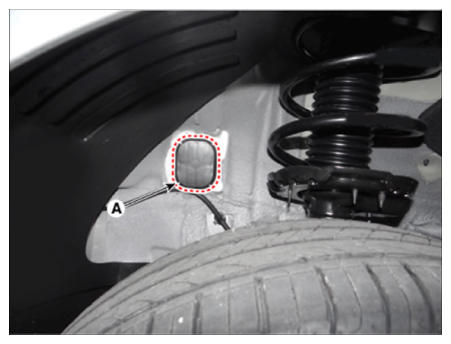

  13. Remove the cover (A).
    G13403720Courtesy of KIA MOTORS AMERICA, INC.

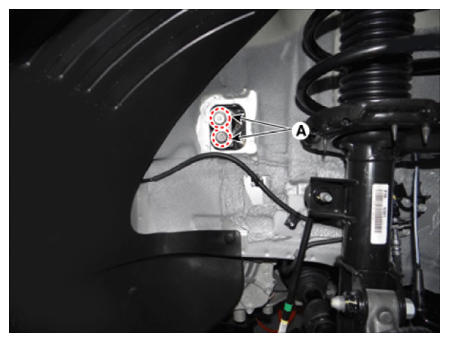

  14. Remove the transaxle mounting bracket bolts (A).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G13403721Courtesy of KIA MOTORS AMERICA, INC.

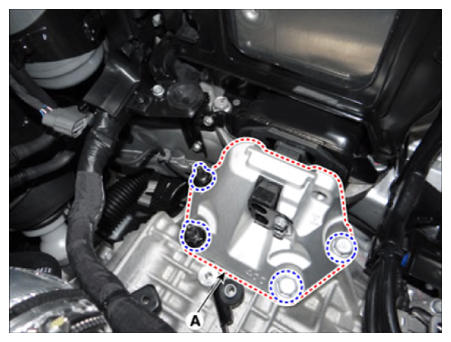

  15. Remove the transaxle support bracket (A).

    Tightening torque:

    58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb.ft)

    G13403722Courtesy of KIA MOTORS AMERICA, INC.
  16. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  17. Remove the drive shaft assembly.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

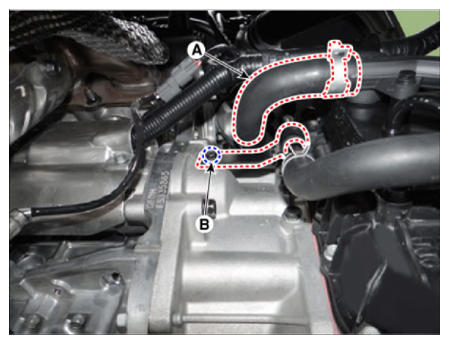

  18. Separate the coolant hose (A) and then remove the coolant pipe bracket mounting bolt (B).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13403723Courtesy of KIA MOTORS AMERICA, INC.

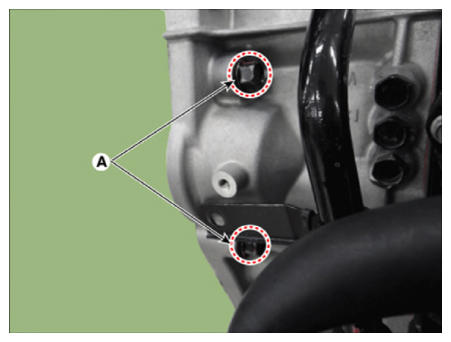

  19. Remove the starter mounting bolts (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G13403724Courtesy of KIA MOTORS AMERICA, INC.

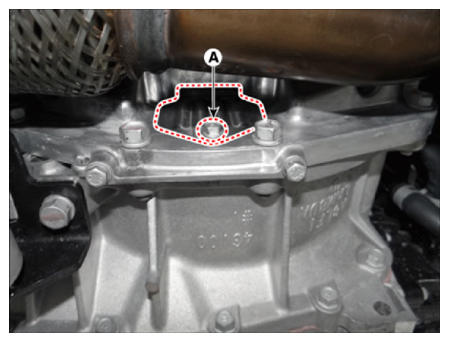

  20. Remove the cover (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13403725Courtesy of KIA MOTORS AMERICA, INC.

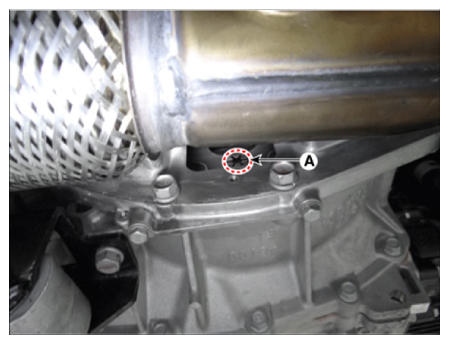

  21. Remove the torque converter mounting bolts (A-6 pcs) by rotating the crankshaft.

    Tightening torque:

    45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb.ft)

    G13403726Courtesy of KIA MOTORS AMERICA, INC.
  22. Support the transaxle safely on a jack.

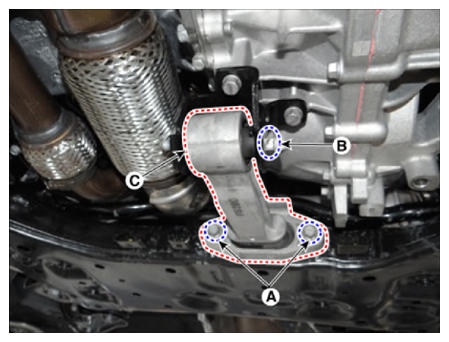

  23. Remove the roll rod bracket (C) after loosening the bolts (A, B).

    Tightening torque:

    1. 107.9 - 127.5 N.m (5.0 - 6.5 kgf.m, 79.6 - 94.0 lb.ft)
    2. 49.0 - 63.7 N.m (11.0 - 13.0 kgf.m, 36.2 - 47.0 lb.ft)
    G13403727Courtesy of KIA MOTORS AMERICA, INC.

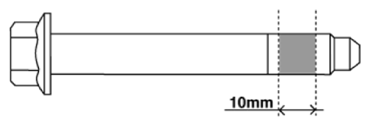

    NOTE: Replace bolt (B) with a new one or install after applying sealant (3M 2353) as shown below.
    G13403728Courtesy of KIA MOTORS AMERICA, INC.

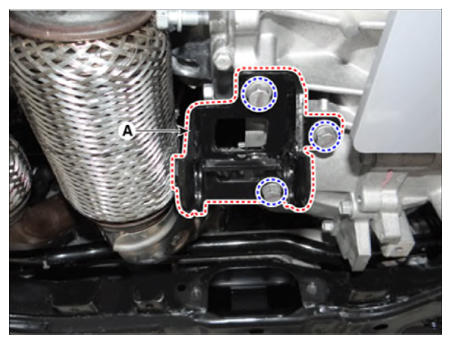

  24. Remove the roll rod support bracket (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

    G13403729Courtesy of KIA MOTORS AMERICA, INC.

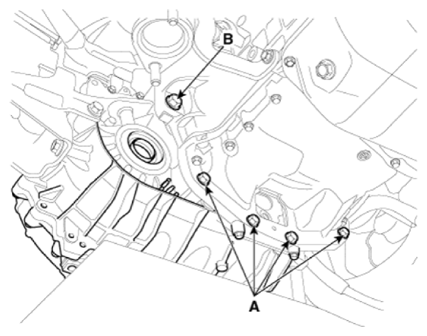

  25. Remove the transaxle lower mounting bolts (A, B).

    Tightening torque:

    1. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb.ft)
    2. 78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)
    G13403730Courtesy of KIA MOTORS AMERICA, INC.
  26. After separating the transaxle from the engine, remove the transaxle by lowering the jack slowly.
    NOTE: Be careful not to damage other nearby systems or parts when removing the transaxle assembly.
