Description And Operation: Description: SBW

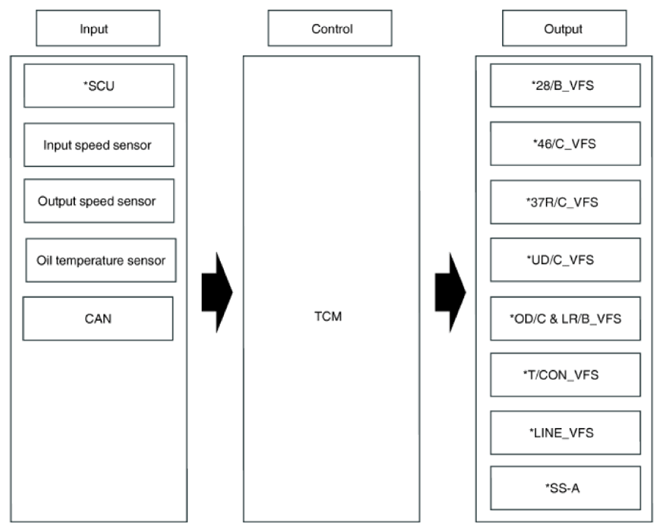

G13403602Courtesy of KIA MOTORS AMERICA, INC.
  1. * SBC: Shift By Cable
  2. * SBW: Shift By Wire
  3. * SCU: SBWControl Unit
  4. * 28/B_VFS: 28 Brake Control Solenoid Valve
  5. * 46/C_VFS: 46 Clutch Control Solenoid Valve
  6. * 37R/C_VFS: 37R Clutch Control Solenoid Valve
  7. * UD/C_VFS: UD Clutch Control Solenoid Valve
  8. * OD/C & LR/B_VFS: OD Clutch & LR Brake Control Solenoid Valve
  9. * T/CON_VFS: Torque Converter Control Solenoid Valve
  10. * LINE_VFS: Line Pressure Control Solenoid Valve
  11. * SS-A ON/OFF: SS-A Solenoid Valve
