Description And Operation: Description: Notes

The sensor used is a thermistor (NTC) in which resistance changes with temperature variation.
When the TCM supplies about 5 V of power to sensor, the sensor output value changes depending on ATF temperature.

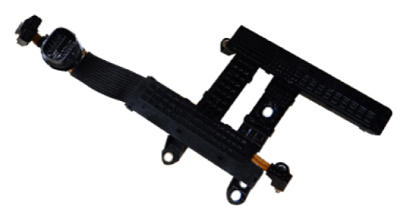

Oil temperature sensor is installed on the valve body and is integrated with main harness.
