Repair Procedures: Inspection

  1. Switch "OFF" ignition.
  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

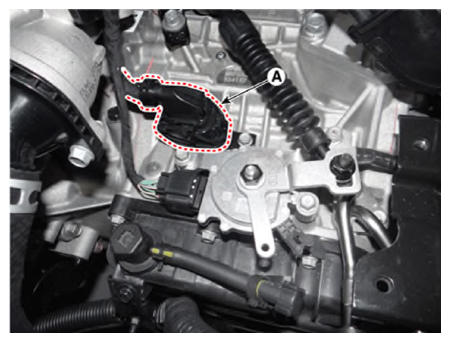

  3. Disconnect the main connector (A).
    G13403629Courtesy of KIA MOTORS AMERICA, INC.

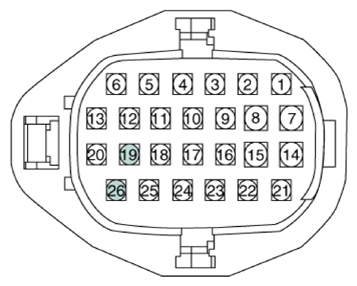

  4. Measure the resistance between + terminal (19) and - terminal (26).
    G13403630Courtesy of KIA MOTORS AMERICA, INC.
  5. Check that the resistance is within the specification.
    Item Specification
    Temp.[(°C)°F]/Resistance (kΩ) (-40)-40/48.1
    (-20)-4.0/15.6
    (0)32.0/5.88
    (20)68.0/2.51
    (40)104.0/1.19
    (60)140.0/0.61
    (80)176.0/0.32
    (100)212.0/0.18
    (120)248.0/0.10
    (140)284.0/0.06
    (150)302.0/0.05
