Repair Procedures: Installation

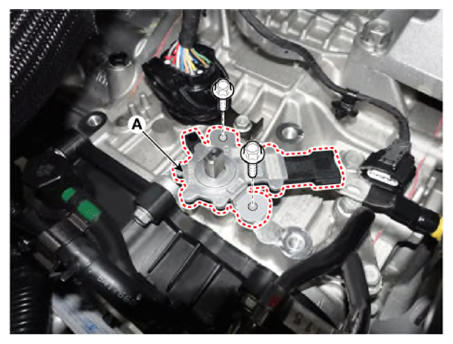

Install the position sensor (A).
NOTE: Lightly tighten the position sensor mounting bolts so that necessary adjustments can be made.

Courtesy of KIA MOTORS AMERICA, INC.

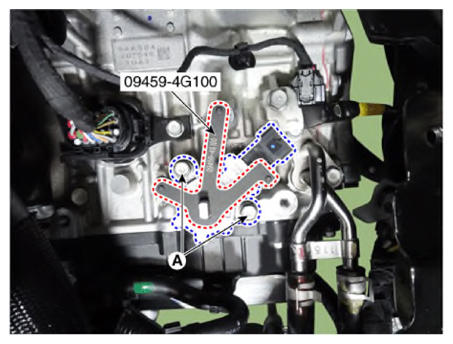

Tighten the bolts to the specified torque after installing the SST (09459 - 4G100).
Tightening torque:

9.8-11.8 Nm (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Connect the position sensor connector after removing the SST (09459-4G100).
Install the electronic shift actuator.
(Refer to Automatic Transaxle Control System - "ELECTRONIC SHIFT ACTUATOR ")
