Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

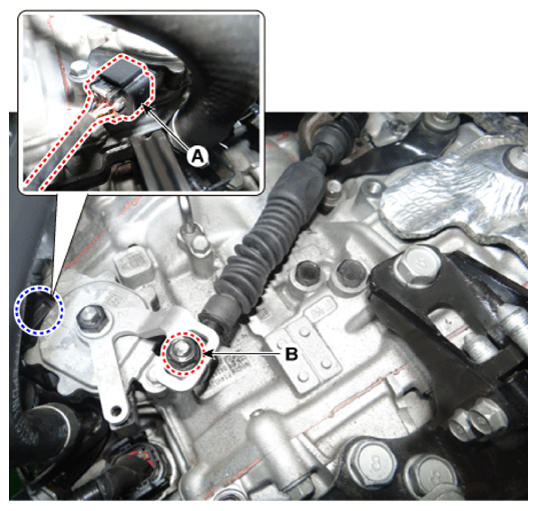

  3. Disconnect the position switch connector (A) and loosen the shift cable mounting nut (B).
    G13307364Courtesy of KIA MOTORS AMERICA, INC.

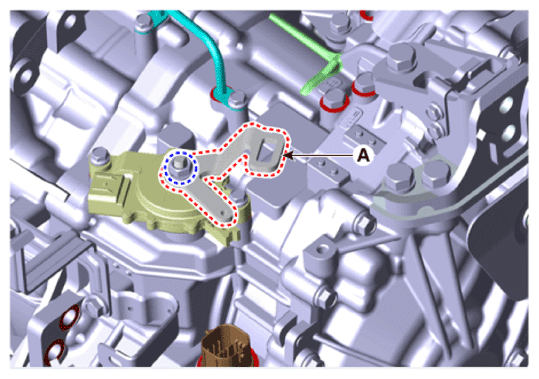

  4. Remove the manual control lever (A) and the washer after removing a nut.
    G13307365Courtesy of KIA MOTORS AMERICA, INC.

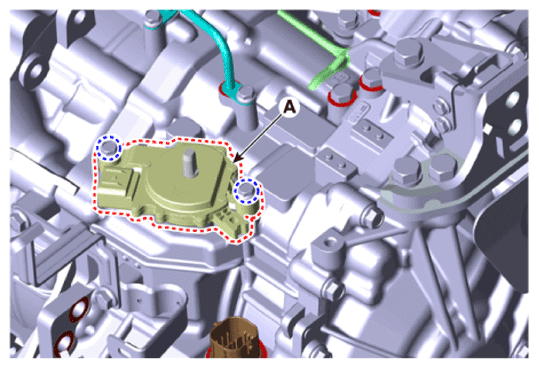

  5. Remove the position switch (A) after removing the bolts.
    G13307366Courtesy of KIA MOTORS AMERICA, INC.
