Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the crash pad passenger side panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

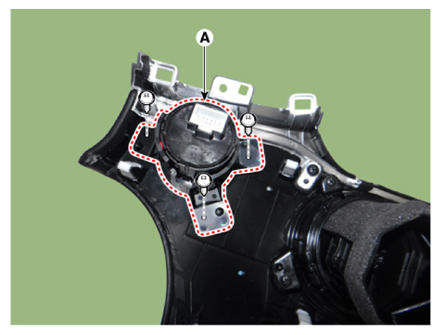

  3. Remove the start/stop button (A) after loosening the mounting screws.
G13128551Courtesy of KIA MOTORS AMERICA, INC.
